DorWatcher door held open alarm

From £87.09 Ex Vat
In stock
Only %1 left
Product code
DW300

Alarm to prevent doors from being left wedged open

Select your required option from the drop down above

Reduce false alarm call outs to the Fire Service - fit DorWatcher today!

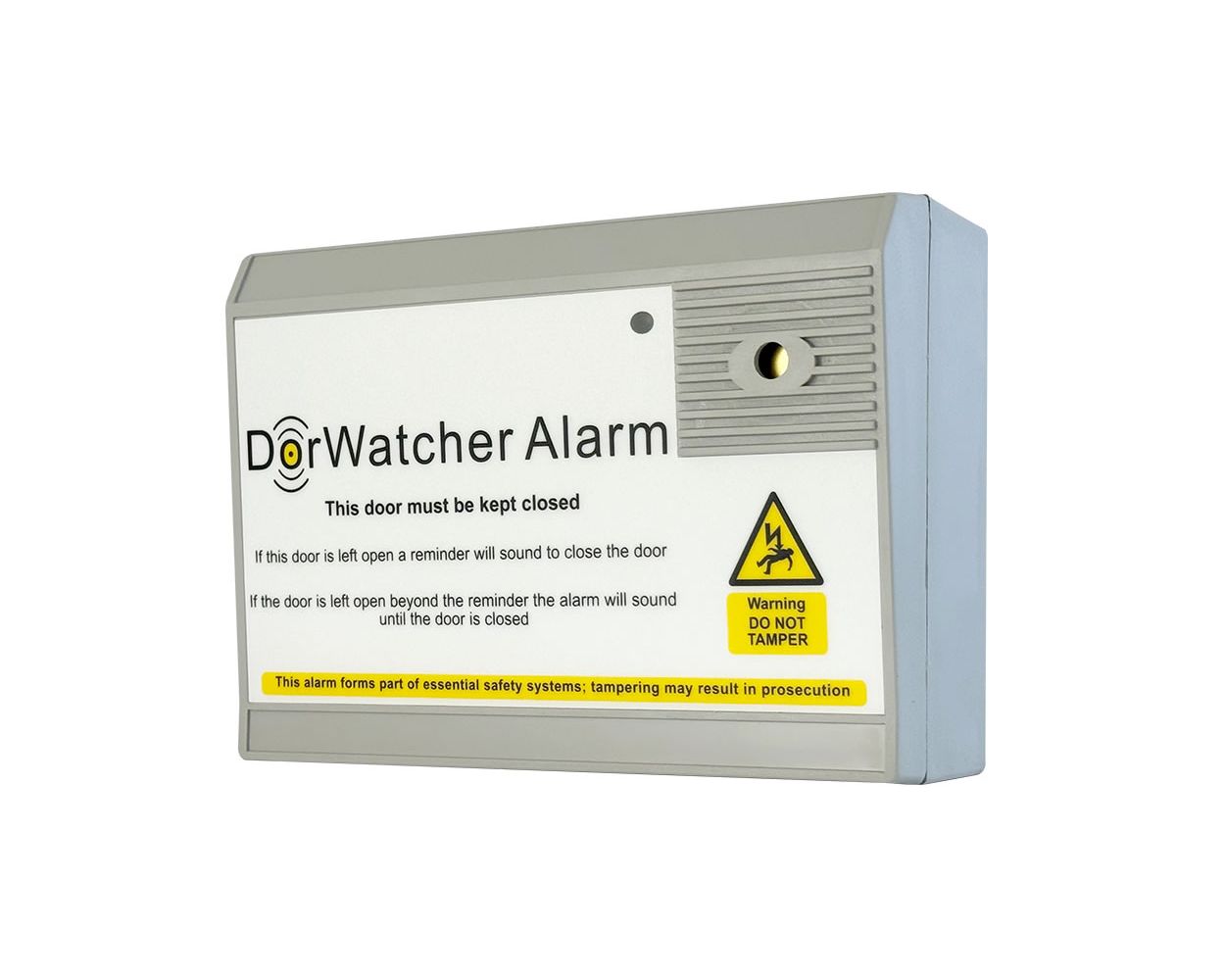

Sometimes referred to as a door screecher, the DorWatcher is an alarm unit used to prevent doors being left open for extended periods of time.

Typically used to alarm kitchen doors in student accommodation, the alarm is activated if the kitchen door remains open for more than 1 minute prompting people in the vicinity to close the door thereby preventing smoke from cooking drifting into corridors and causing fire alarm activations.
Once activated the alarm is automatically reset as soon as the door is closed.

  • Robust ABS plastic enclosure
  • 175 x 125 x 60 tapering to 50mm
  • High Power 105db Sounder
  • Box tamper switch
  • Clear instructions displayed on the unit
  • Adjustable time delays from 30 secs to 7 mins
  • Simple installation

Models available:
DW304 - powered by 6 x AA alkaline batteries (supplied) - ideal for retrofit.
DW305 - powered by a 12vdc power supply with alarm relay output (Power supply available separatley)
DW306 - powered by mains with alarm relay output
All DorWatchers are supplied with fitting instructions, wall fixings, door contact c/w 1 metre of cable (Batteries supplied in DW304 only)

Optional Cage and Anti-tamper screws
CG100 - Cage manufactured from 9 gauge galvanised steel rod, designed to protect our Exitguard, DorWatcher, Zoneguard, Aidalarm and Stop 'n' Search models from vandalism and misuse. The cage has openings for normal operation.

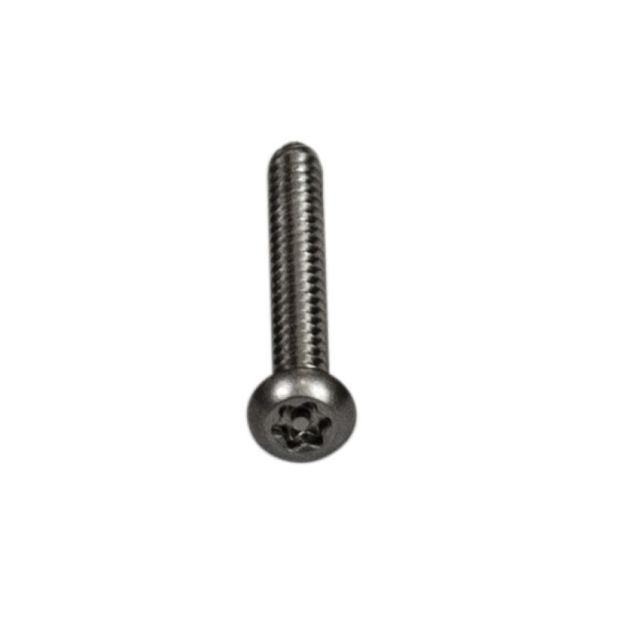

FIX/16 - 4off / pack used to secure CG100

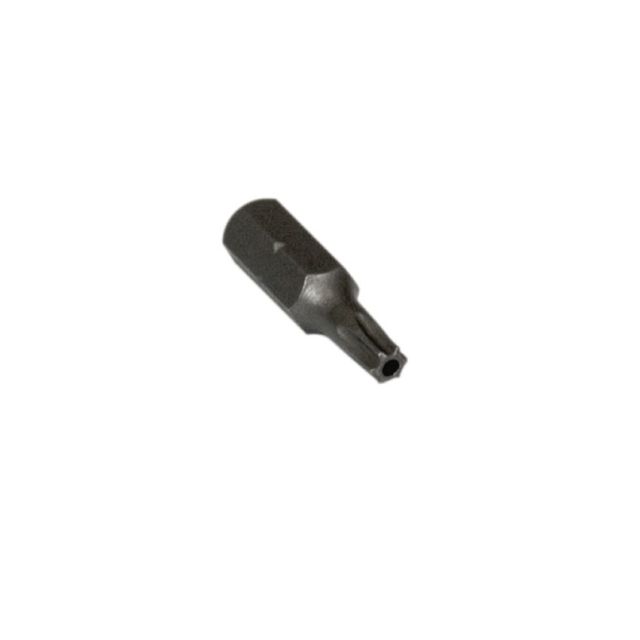

FIX/16ATS - 2 hole anti tamper screwdriver bit to suit FIX/16 screws

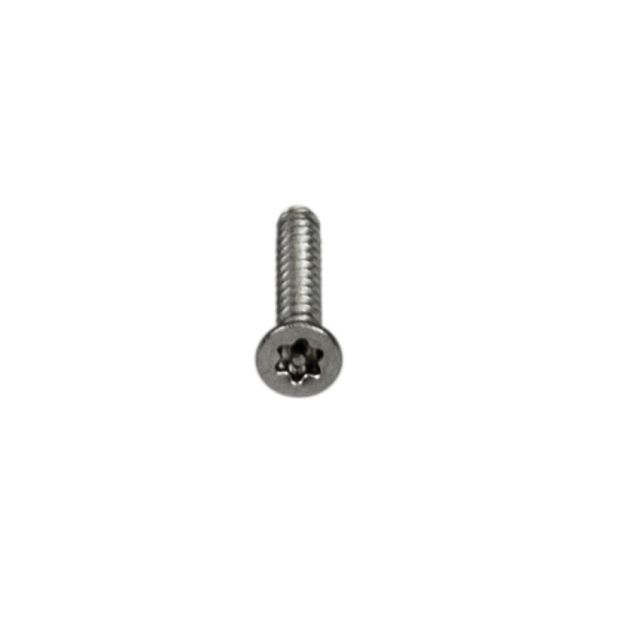

FIX/17 - Pack of 5 anti tamper screws for DorWatcher lid and door contact

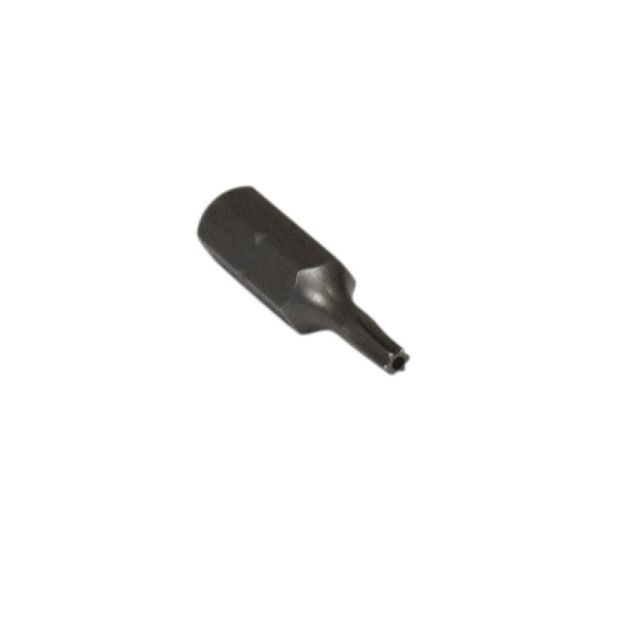

FIX/17/ATS - 2 hole anti tamper screwdriver bit to suit FIX/17 screws


DorWatcher Series Model Comparison

Code DW304 DW305 DW306
Battery Monitor Yes No Yes
Supply Voltage 7v -14vdc batteries 12vdc 240vac
Supply Current N/A 45mA quiescent 155mA max 45mA quiescent 155mA max
Batteries (supplied) 6 x AA alkaline No No
105db Sounder Yes Yes Yes
Alarm Relay Contacts No SPCO 1A 30vdc SPCO 1A 30vdc
Auxiliary Power O/P No No 200mA @12vdc

More Information
Country of Origin UK
Condition New
SKU DW300
Associated Product Codes DW304, DW305
DW306
Warranty 3 Years
- Installation Instructions for DW300
- Product Information Sheet for DW300
