12-18vdc LDO regulator module 12vdc 500mA output c/w pillars
Move your mouse over image or click to enlarge

12-18vdc LDO regulator module 12vdc 500mA output c/w pillars

Product code:

S1812REG

Availability: In stock

Excl. VAT: £24.24 Incl. VAT: £29.09
12-18vdc LDO regulator module 12vdc 500mA output c/w pillars

Be the first to review this product

Details

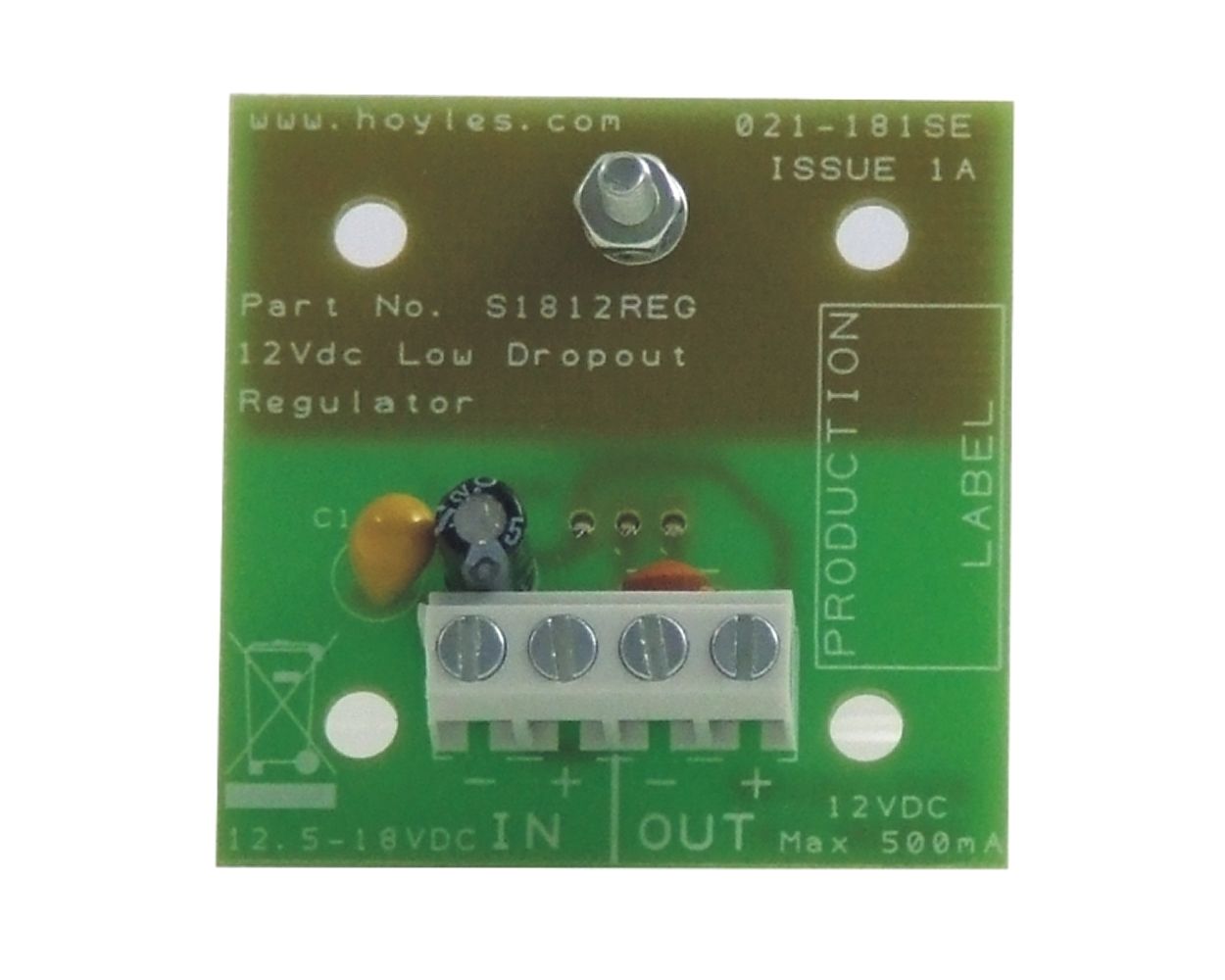

A 12vdc Low Drop Out Regulator module which will stabalise a PSU output of between 12.5 and 18vdc providing 12vdc at up to 500mA. The Low Drop Out function ensures that even if the input from the PSU drops to 12vdc, a minimum of 11.5vdc will be provided by the module.

    Specification
  • Led Current - N/A
  • Switch Contacts - SPCO 2A @30vdc
  • Supply Voltage- N/A
  • Supply Input Current - N/A
  • Visual Indication - N/A
  • Integral Sounder Level - N/A
  • Tamper - N/A
  • Material - PCB Module
  • Dimensions - 45mm x 45mm x 14mm
  • Provided complete with nylon mounting pillars
  • Weight - 0.03kg
  • IP Rating - N/A
  • Approvals - CE and RoHs complaint
