Basic Shared Bathroom Kit

Sharing one bathroom between two bedrooms can save an entire bathroom worth of floor space plus the cost of the sanitary ware, maintenance and cleaning. By sharing a single facility between two rooms or areas better facilities can be provided in less space and at a reduced cost. Suited to domestic and commercial applications, our Basic Shared Bathroom Solution provides an electronic means of locking two doors of a shared bathroom at the press of a single button. It provides LED indication of the door lock status to the user. The system ensures that one user cannot vacate the bathroom leaving another users door locked as they could if using mechanical locks. What the basic system does not prevent is persons using the bathroom to pass from one room to another, if this is requirement for your installation, please see our Advanced System.

• Shares one en-suite bathroom between two bedrooms
• Ensures users cannot be locked out of their bathroom
• Simple to use
• Suited to various domestic and commercial applications
• Complete kit available (excluding cable)
• Dimensions 275 x 225 x 65mm

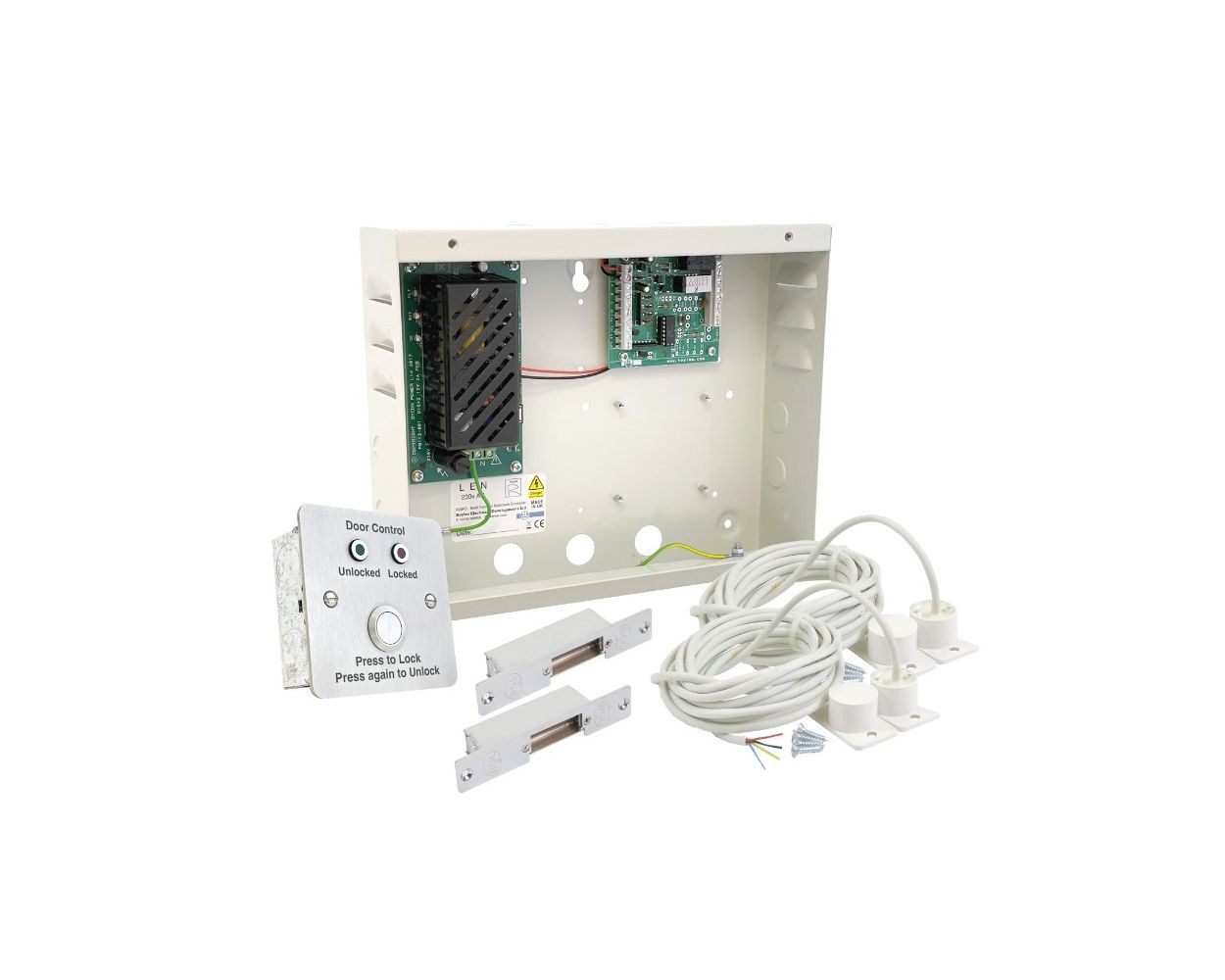

Basic Shared Bathroom Kit IGSFBKIT includes:
1 x IGSFB - Multi Function Bathroom Controller
1 x S1720SI - Internal door control button with LEDs
2 x H-DS-002 12VDC Fail safe mortice door lock

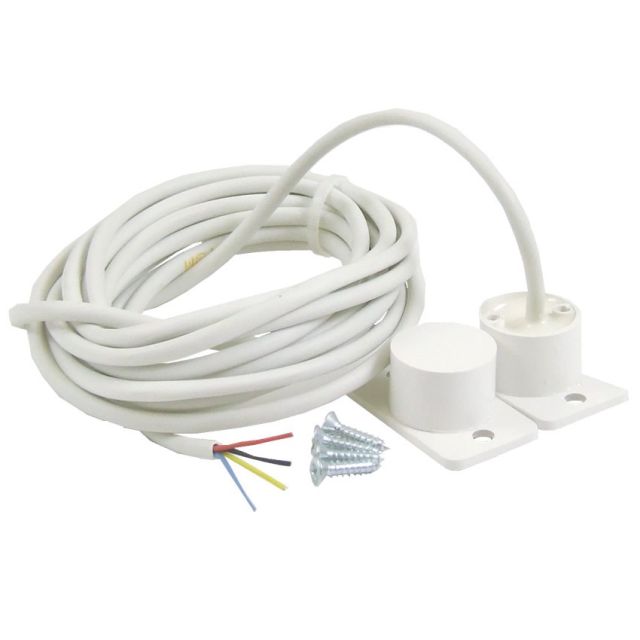

2 x DCS/F3M Flush fitting magnetic door contact c/w 3m potted cable

Accessories

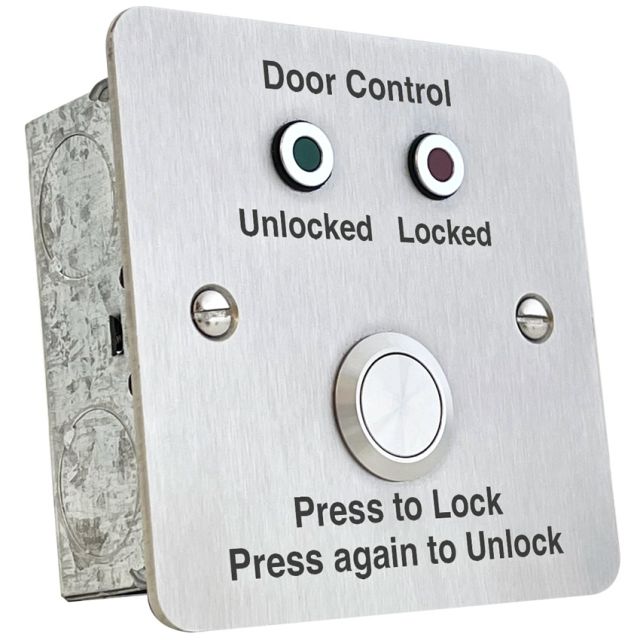

S1720SI Internal door control button with LEDs

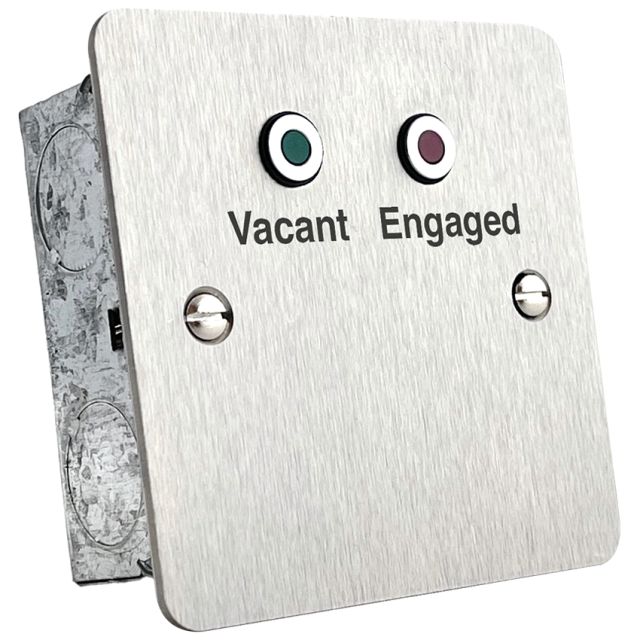

S1720IN External Vacant/Engaged LED indicators

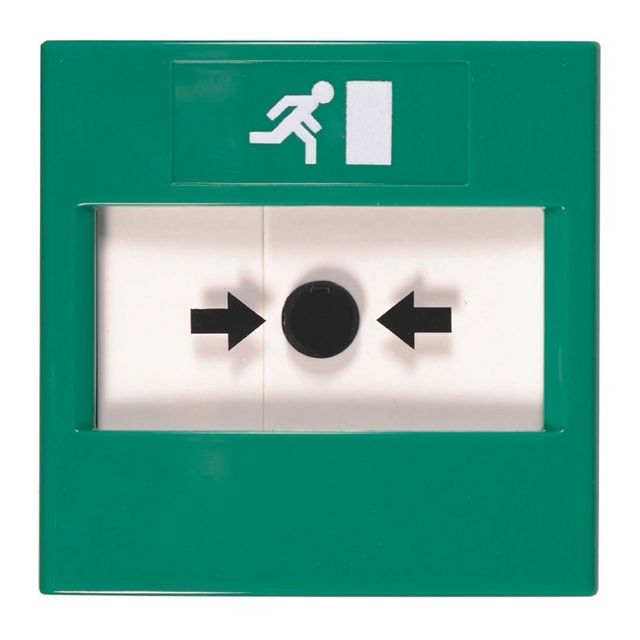

MCP-GS-11 DPCO Emergency door release unit

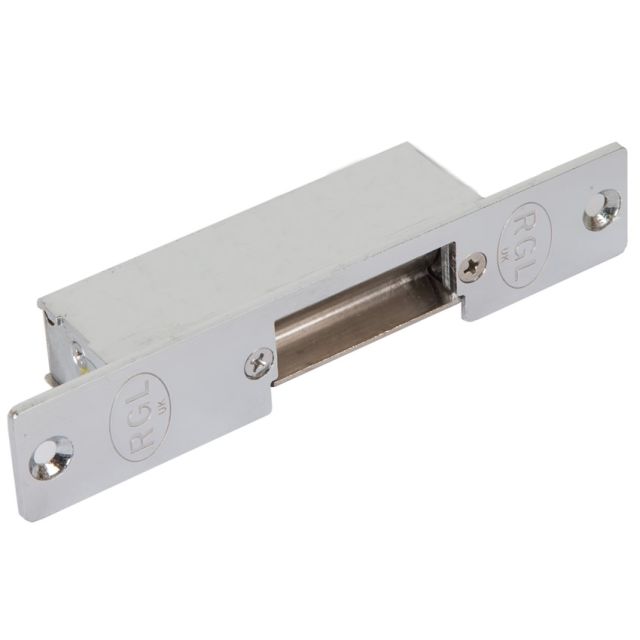

H-DS-002 12VDC fail safe mortice door lock
IGSFB Basic Multi-Function Bathroom Controller

The controller is provided in a painted steel enclosure with an integral 2A 12vdc PSU to power the controller and any door locks required. The controller is intended for use as the basis to our Basic Shared Bathroom Solution or our Automatic WC Door System.
