Boxed Quad Double Pole Relay Module
Move your mouse over image or click to enlarge

Boxed Quad Double Pole Relay Module

Availability: In stock

Excl. VAT: £48.23 Incl. VAT: £57.88
Models available are:
S342-4B - 12vdc powered
S342-4B/24 - 24vdc powered
Select your required option from the drop down below.

Be the first to review this product

Details

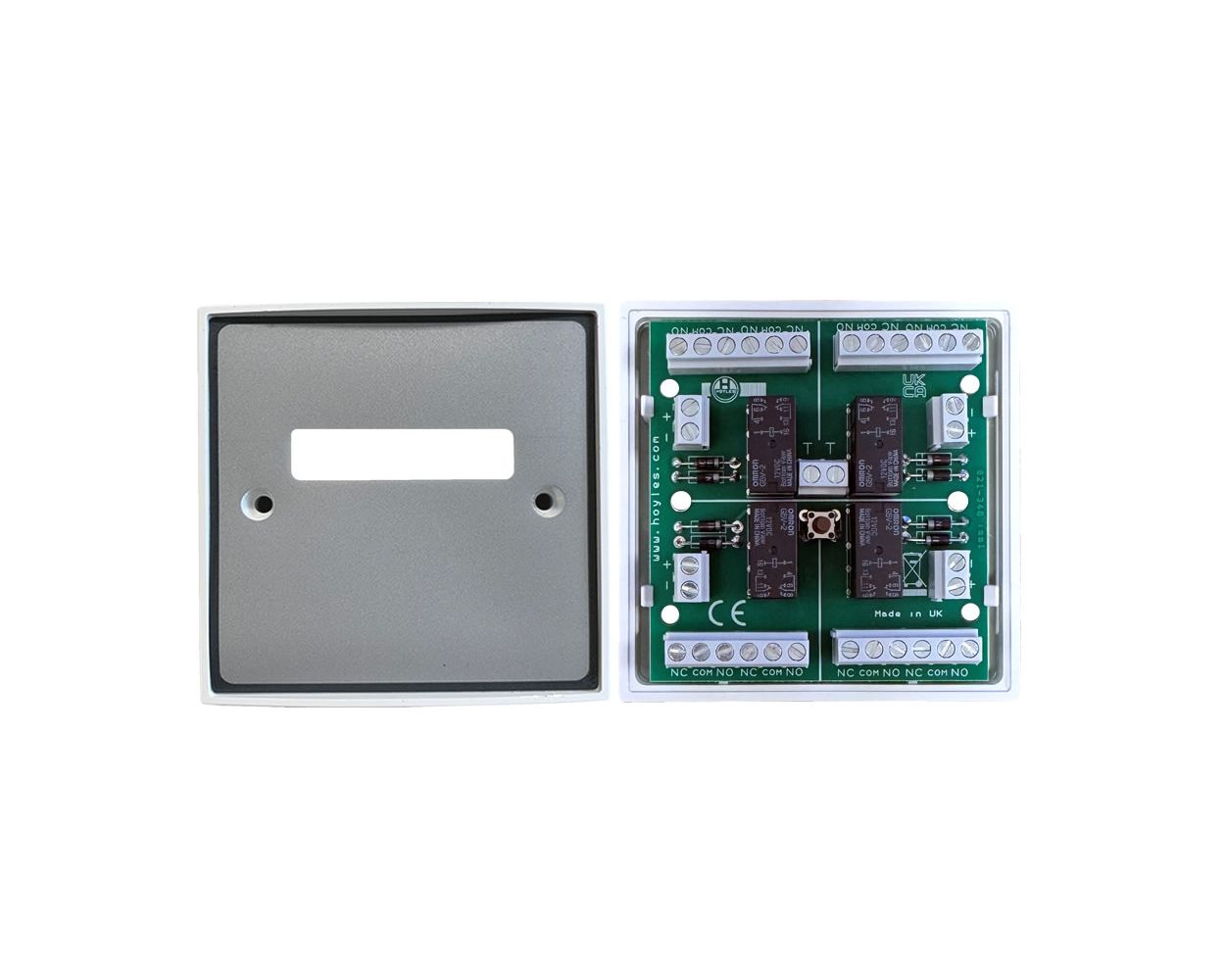

Four completely separate double pole change over relays on a single PCB mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch.

    S342-4B and S342-4B/24
  • S342-4B Requires 12vdc supply at 20mA
  • S342-4B/24 Requires 24vdc supply at 20mA
  • Contacts Rated at 2amp
  • Four mounting holes provided for more permanent fixing
  • Knock outs for cable entry
  • Intended for internal use only
  • Screw terminals for easy connection

This unit is provided housed in a single gang white ABS enclosure.
Relay Dimensions - L80mm x W74mm x D16mm Box Dimensions - L87mm x W87mm x D36mm
