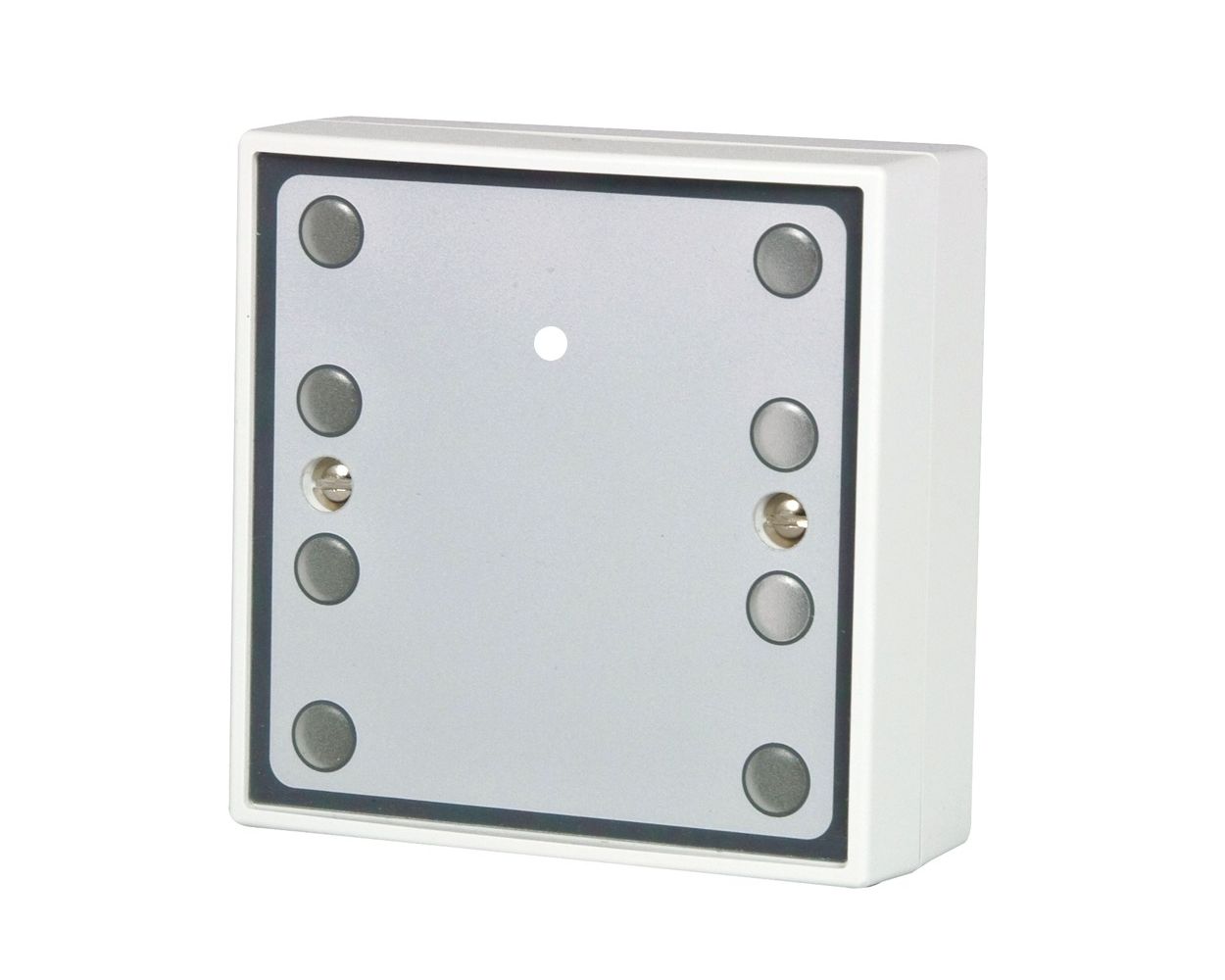

High Power (108dB) sounder with 8 ultra bright LEDs
Move your mouse over image or click to enlarge

High Power (108dB) sounder with 8 ultra bright LEDs

Availability: In stock

Excl. VAT: £40.63 Incl. VAT: £48.76
High Power (108dB) sounder with 8 ultra bright LEDs

Be the first to review this product


High Power Overdoor Light/Sounder unit. There are separate drive inputs for both the light and the sounder. Housed in a low profile ABS ecnlosure with a scratch resistant decal. Four adjustable tones giving a sounder output at 12vdc up to 108db. LEDs are linked to sounder and strobe in sympathy. Ultra bright LEDs available as Red, Green or Yellow.
The LED current limit resistor is provided for 12 vdc operation.

  • Led Current - 30mA @12vdc
  • Sounder Current - 70mA @12vdc
  • Switch Contacts - N/A
  • Visual Indication - 8 x ultra bright LEDs
  • Integral Sounder Level - 108dB @1m
  • Tamper - N/A
  • Material - White ABS
  • Weight - 0.12kg
  • 87mm x 87mm x 36mm (Surface mount)
  • IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
  • Approvals - CE and RoHs compliant
  • Back box supplied for surface mount
  • Can be Semi Flushed onto standard flush back box (Not supplied)
  • Mark resistant decal

Additional Information


Sorry No Video Available

Delivery Information

We offer UK Next Day and UK 2-3 Day shipping options on all stock products with Free UK Shipping on orders over 100 GBP before tax.

International delivery rates vary by country.

Please visit our Delivery Information  page for a full explanation of our shipping arrangements.

Sorry No FAQs Available

Product Information Sheet

Product Information Sheet for S1788P

Installation Instructions

Installation Instructions for S1788P
