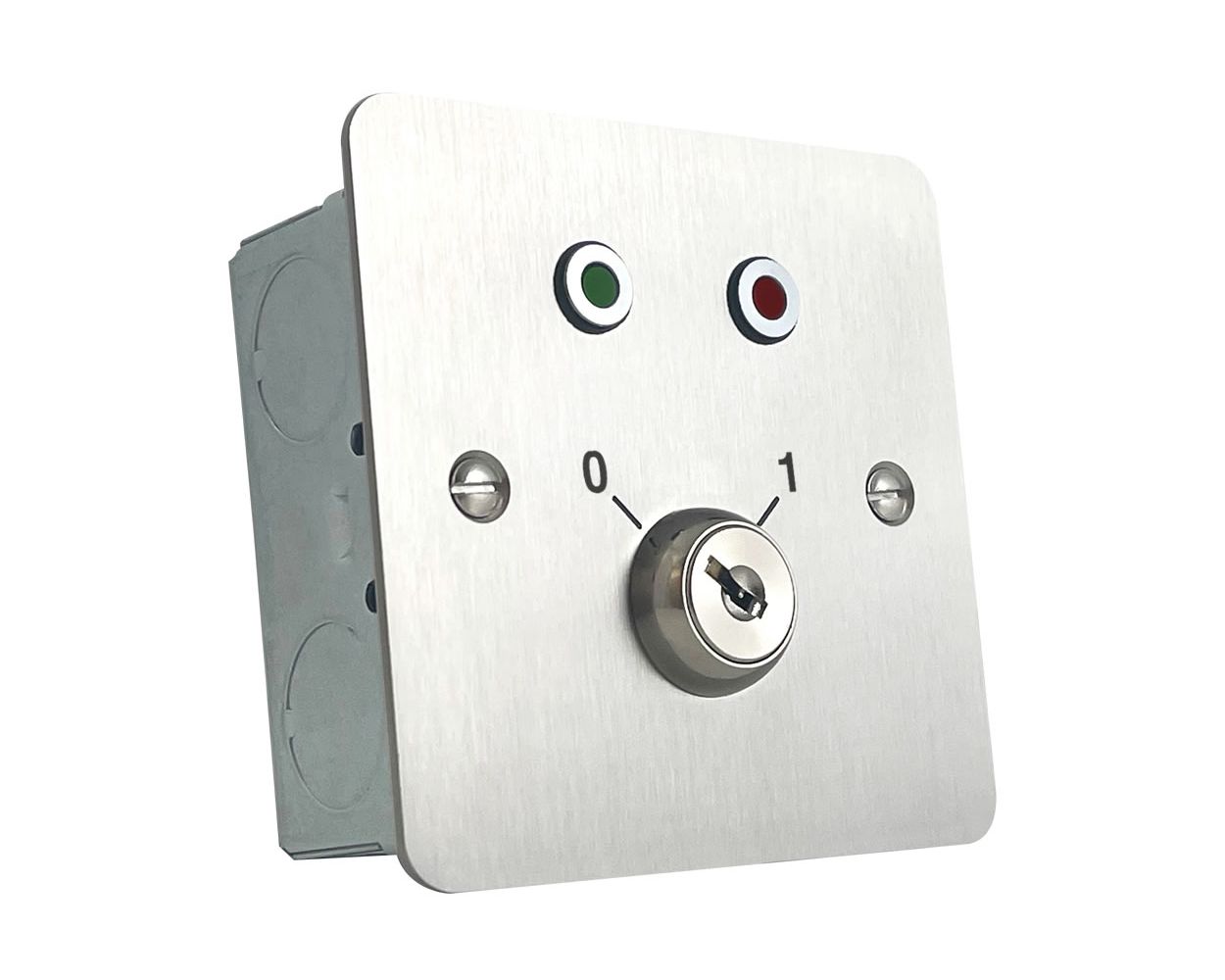

Keyswitch trapped in the ON position with two LEDs
Move your mouse over image or click to enlarge

Keyswitch trapped in the ON position with two LEDs

Product code:

S1729ST1

Availability: In stock

Excl. VAT: £62.79 Incl. VAT: £75.35
Two position keyswitch trapped in the ON position with one red and one green LED.

Be the first to review this product

Details

Flush fitting stainless steel engraved two position keyswitch with one red and one green flat LED in chrome bezels. This is a double pole unit with change over contacts. The keyswitch on this version is trapped in the 1 position. Separate terminals are provided for the LEDs. The LED current limit resistor is provided for 12 vdc operation.

    Specification
  • Led Current - 20mA per LED @12vdc
  • Switch Contacts - DPCO 2A @30vdc
  • Sounder Current - N/A
  • Visual Indication -1 x red LED 1 x green LED
  • Integral Sounder Level - N/A
  • Tamper - N/A
  • Material - 304 Grade Stainless Steel
  • Dimensions - 86mm x 86mm x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mounted using part no. S0610 listed below
  • Weight - 0.28kg
  • IP Rating - IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
  • Approvals - CE and RoHs compliant

Additional Information

FAQs N/A

Sorry No Video Available

Delivery Information

We offer UK Next Day and UK 2-3 Day shipping options on all stock products with Free UK Shipping on orders over 100 GBP before tax.

International delivery rates vary by country.

Please visit our Delivery Information  page for a full explanation of our shipping arrangements.

Sorry No FAQs Available

Product Information Sheet

Product Information Sheet for S1729ST1

Installation Instructions

Installation Instructions for S1729ST1
