Mains rated relay kit
Move your mouse over image or click to enlarge

Mains rated relay kit

Availability: In stock

From: Excl. VAT: £69.16 Incl. VAT: £82.99
Models available are:
S361-MK - 12vdc powered
S361-MK/24 - 24vdc powered
Select your required option from the drop down below.

Be the first to review this product

* Required Fields

Details

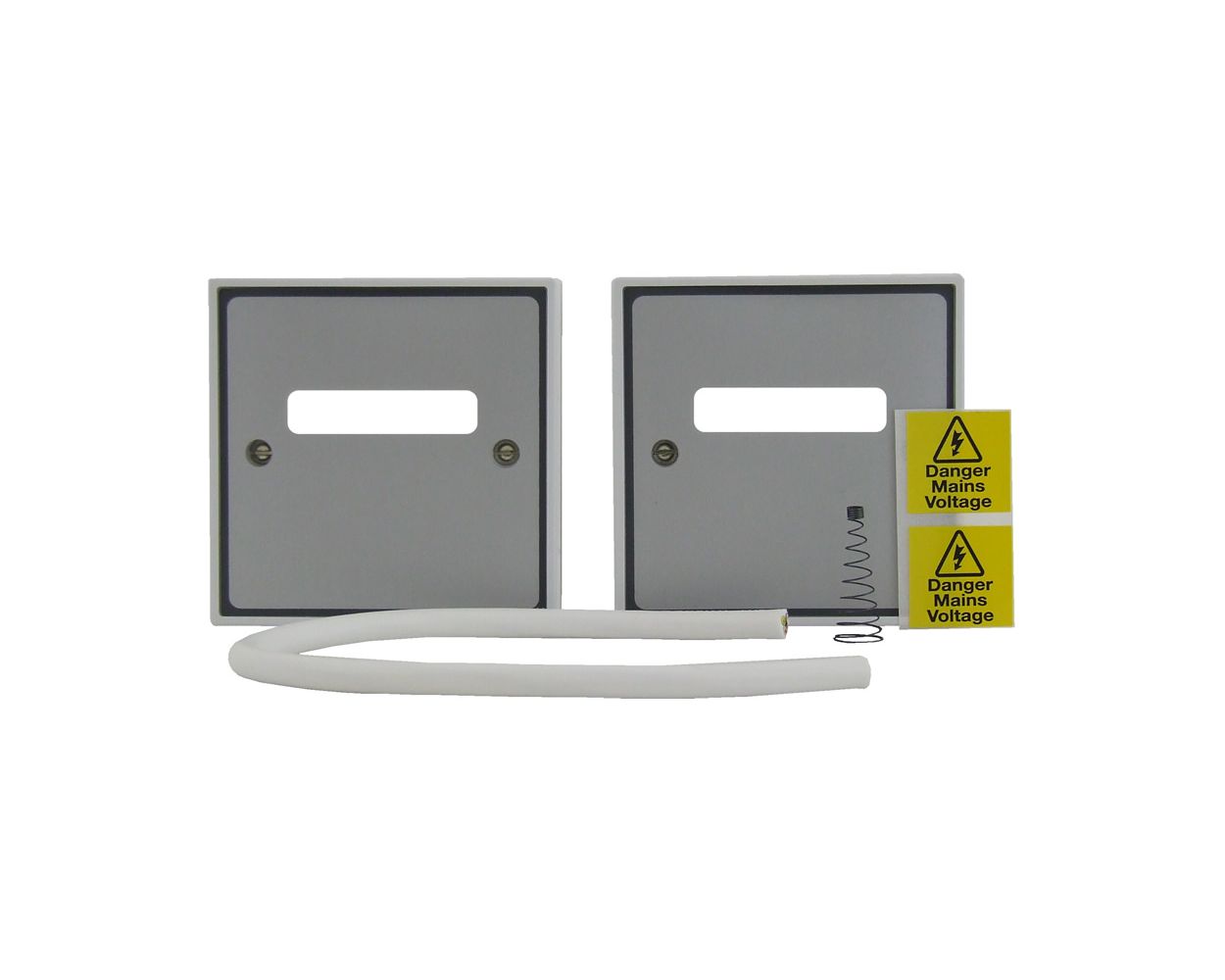

This kit is designed for switching a 240vac mains load of up to 5A operated by a 12vdc or 24vdc input from an intruder for fire alarm system depending on version. The relay coil is rated at 35mA. Two white plastic single gang enclosures are provided for segregation of the alarm system and the mains connections. The first enclosure is tampered and contains a relay with single pole change over contacts rated 5A at 240vac or 12/24vdc. The relay coil requires 12vdc or 24vdc, depending on version, to operate. An LED is also provided which illuminates when the relay is energised. The tamper switch is normally closed and opens when the face plate is removed from the wall. The second enclosure is purely a junction box which provides a replication of the SPCO contacts. An earth terminal is also provided for convenient termination of an in coming mains cable. As the enclosures are all plastic, no earth connection is required. A loop of cable is provided within the kit to connect the two enclosures together.

  • These units are provided housed in a single gang white ABS enclosures
  • Relay/PCB Dimensions - L80mm x W74mm x D16mm
  • Box Dimensions - L87mm x W87mm x D36mm

Additional Information

FAQs No

Sorry No Video Available

Delivery Information

We offer UK Next Day and UK 2-3 Day shipping options on all stock products with Free UK Shipping on orders over 100 GBP before tax.

International delivery rates vary by country.

Please visit our Delivery Information  page for a full explanation of our shipping arrangements.

Sorry No FAQs Available

12v Installation Instructions

12v Installation Instructions for S361-MK-CF

24v Installation Instructions

24v Installation Instructions for S361-MK-CF
