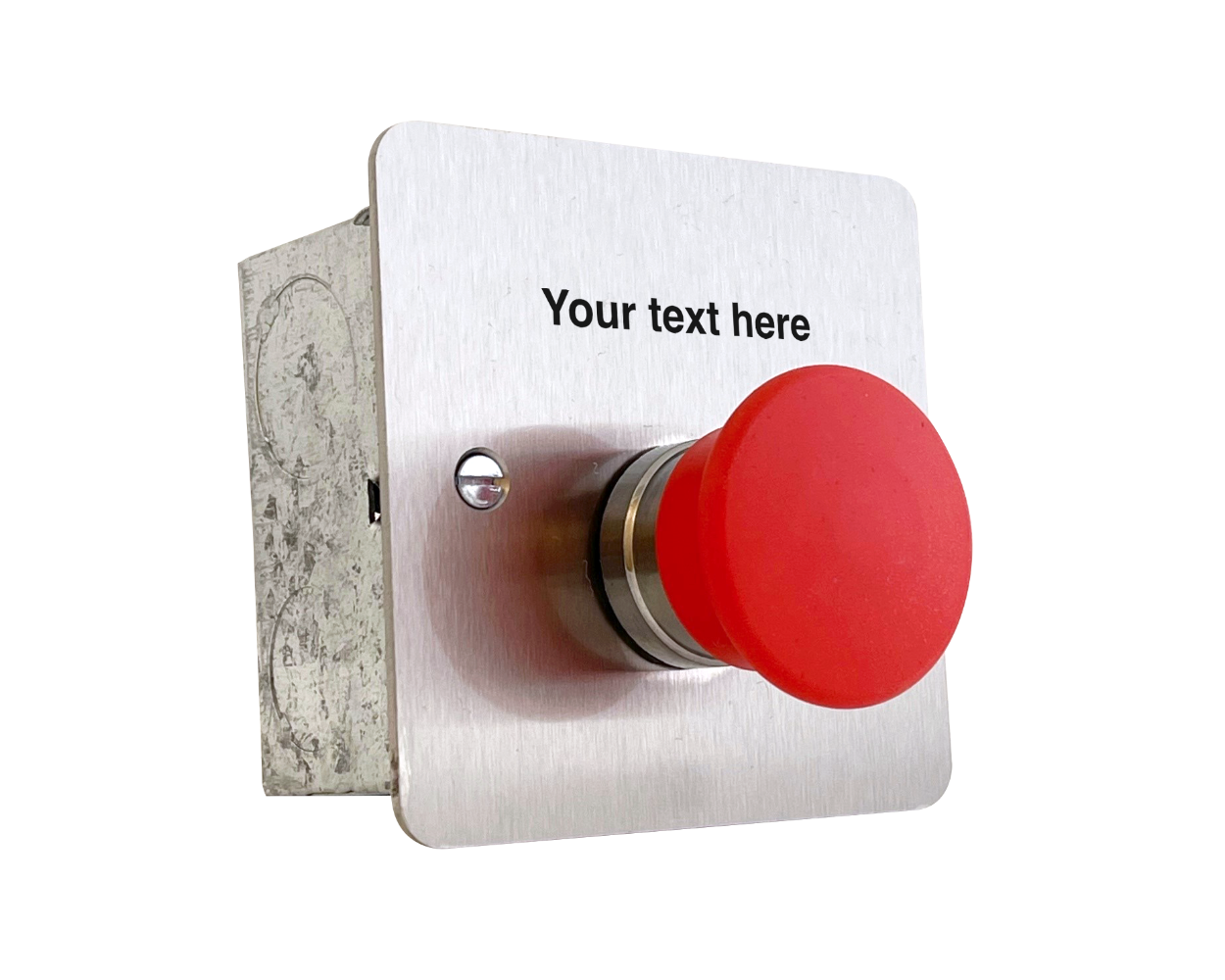

Mushroom Head Button with momentary action. Supplied with normally closed and normally open contacts.
This version supplied with text of your choice engraved. Specify text required when ordering, 45 characters maximum
Please Note: Lead time for this item is 7-10 working days

Specification

• Led Current - N/A
• Switch Contacts - 1 x N/O 1 x N/C both 500mA @30vdc
• Sounder Current - N/A
• Visual Indication - N/A
• Integral Sounder Level - N/A
• Tamper - N/A
• Material - 304 Grade Stainless Steel
• Dimensions - 86mm x 86mm x 2mm - Facia
• 47mm galvanised back box supplied
• Surface mounted using part no. S0610-50 listed below
• Weight - 0.34kg
• IP Rating - IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
• Approvals - CE and RoHs compliant
