Press to Exit button Stainless steel
Move your mouse over image or click to enlarge

Press to Exit button Stainless steel

Product code:

S1706S

Availability: In stock

Excl. VAT: £48.47 Incl. VAT: £58.16
Press to Exit button Stainless steel

Be the first to review this product

Details

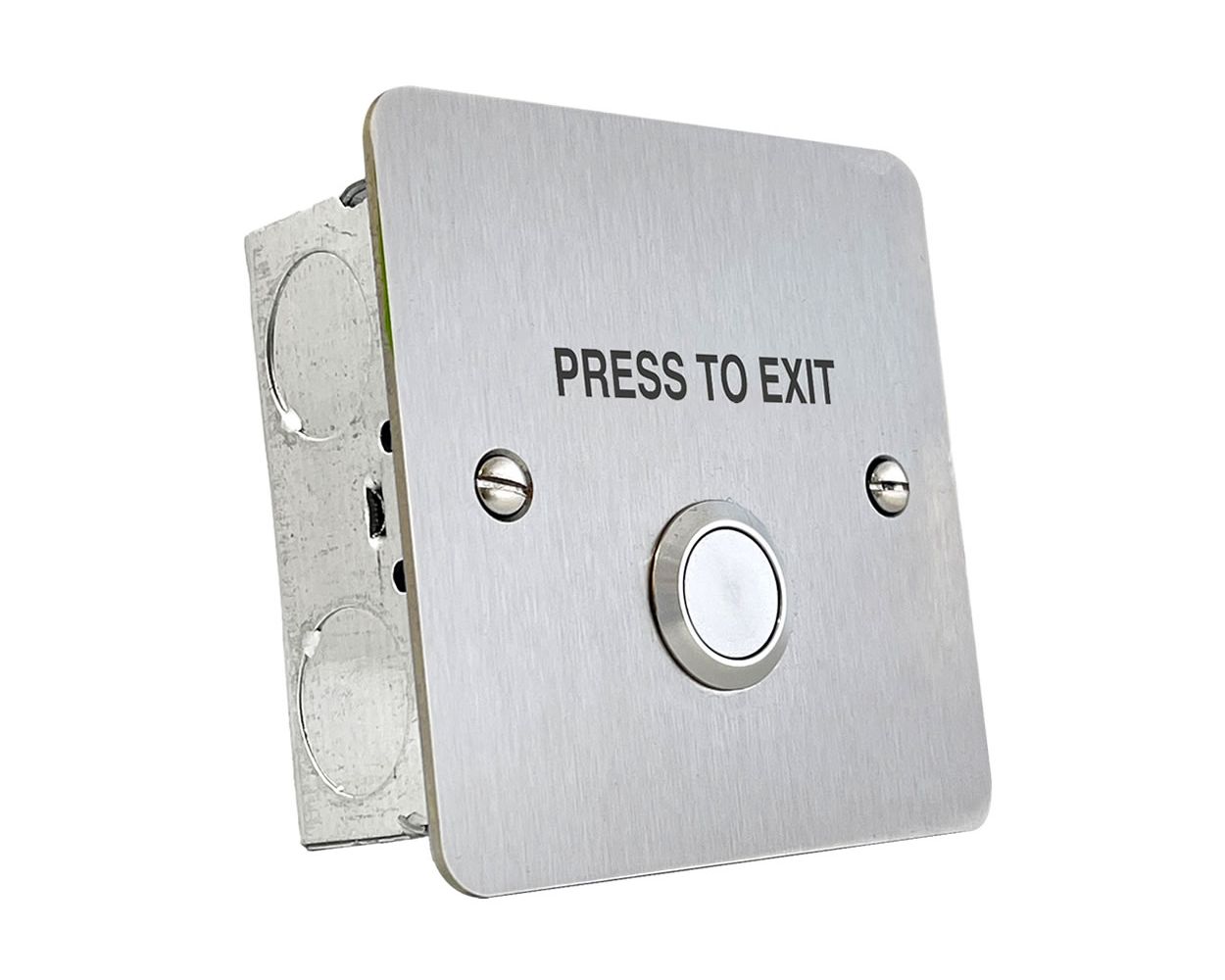

Flush Fitting stainless steel engraved Press to Exit push button with vandal resistant button. This is a single pole non-latching unit with change over contacts. Suitable for use with access control systems etc.

    Specification
  • Led Current - N/A
  • Switch Contacts - Single pole normally open 2A@ 30vdc
  • Sounder Current - N/A
  • Visual Indication - N/A
  • Integral Sounder Level - N/A
  • Tamper - N/A
  • Material - 304 Grade Stainless Steel
  • Dimensions - 86mm x 86mm x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mounted using part no. S0610 listed below
  • Weight - 0.25kg
  • IP Rating - IP65 front side contact area
  • Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required

Additional Information

FAQs N/A

Sorry No Video Available

Delivery Information

We offer UK Next Day and UK 2-3 Day shipping options on all stock products with Free UK Shipping on orders over 100 GBP before tax.

International delivery rates vary by country.

Please visit our Delivery Information  page for a full explanation of our shipping arrangements.

Sorry No FAQs Available

Product Information Sheet

Product Information Sheet for S1706S

Installation Instructions

Installation Instructions for S1706S
