Press to Lock/Unlock button with LEDs
Move your mouse over image or click to enlarge

Press to Lock/Unlock button with LEDs

Product code:

S1720SI

Availability: In stock

Excl. VAT: £70.18 Incl. VAT: £84.22
Press to Lock/Unlock button with LEDs

Be the first to review this product

Details

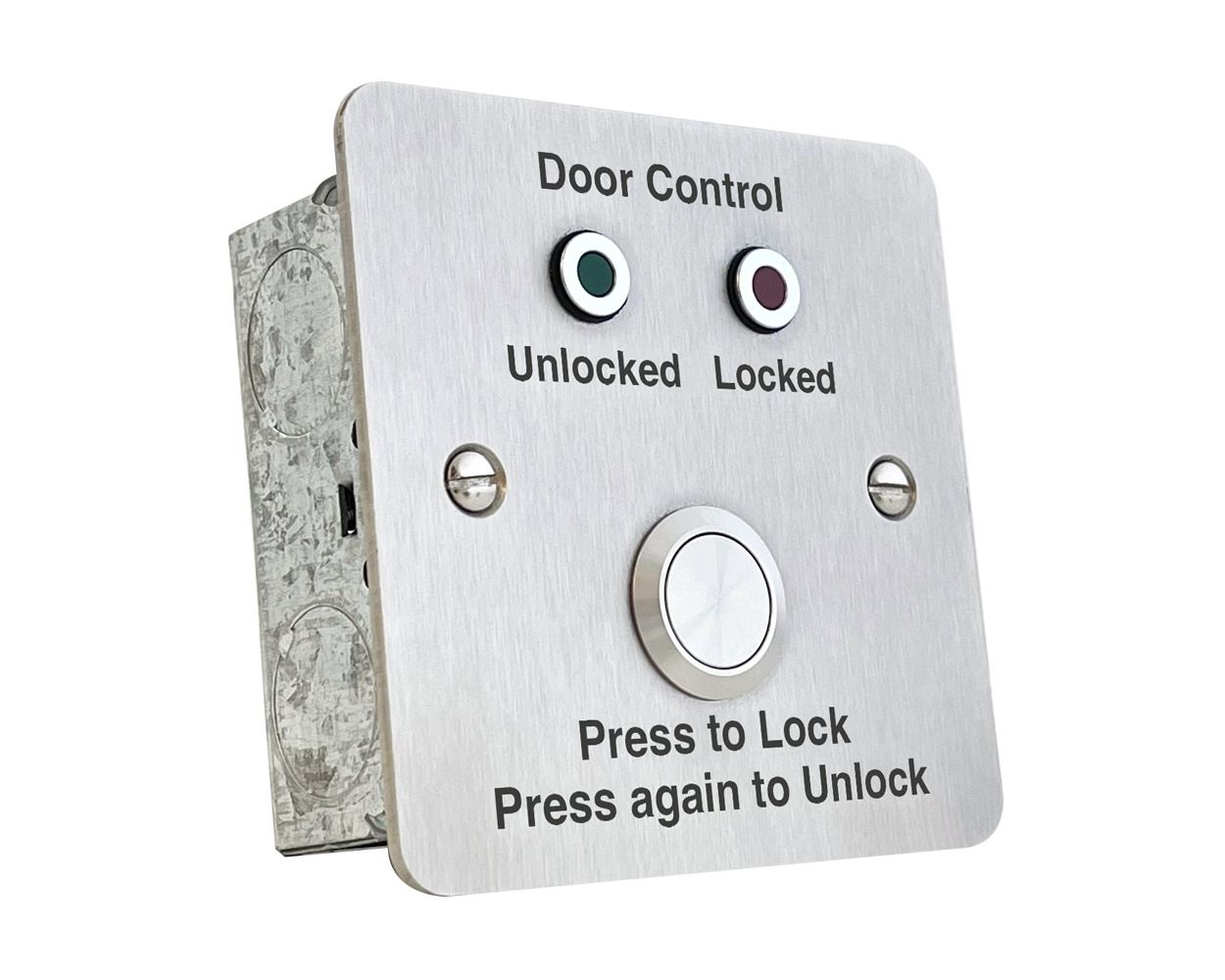

Flush fitting stainless steel vandal resistant push button with one red and one green flat LED in chrome bezels. Engraved with Press to lock/unlock. This is a non-latching unit with single pole change over contacts. Separate terminals are provided for each LED. The LED current limit resistor is provided for 12 vdc operation.
Designed specifically for use with our range of Shared bathroom controllers IGSFB and IGSFC.

    Specification
  • Led Current - 20mA per LED @12vdc
  • Switch Contacts - SPCO 2A@ 30vdc
  • Sounder Current - N/A
  • Visual Indication - 1 x red LED 1 x green LED
  • Integral Sounder Level - N/A
  • Tamper - N/A
  • Material - 304 Grade Stainless Steel
  • Dimensions - 86mm x 86mm x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mounted using part no. S0610 listed below
  • Weight - 0.28kg
  • IP Rating - IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
  • Approvals - CE and RoHs compliant

Additional Information

FAQs N/A

Sorry No Video Available

Delivery Information

We offer UK Next Day and UK 2-3 Day shipping options on all stock products with Free UK Shipping on orders over 100 GBP before tax.

International delivery rates vary by country.

Please visit our Delivery Information  page for a full explanation of our shipping arrangements.

Sorry No FAQs Available

Product Information Sheet

Product Information Sheet for S1720SI

Installation Instructions

Installation Instructions for S1720SI
