Red Overdoor Light and sounder stainless steel
Move your mouse over image or click to enlarge

Red Overdoor Light and sounder stainless steel

Product code:


Availability: In stock

Excl. VAT: £57.13 Incl. VAT: £68.56
Red Overdoor Light and sounder stainless steel

Be the first to review this product

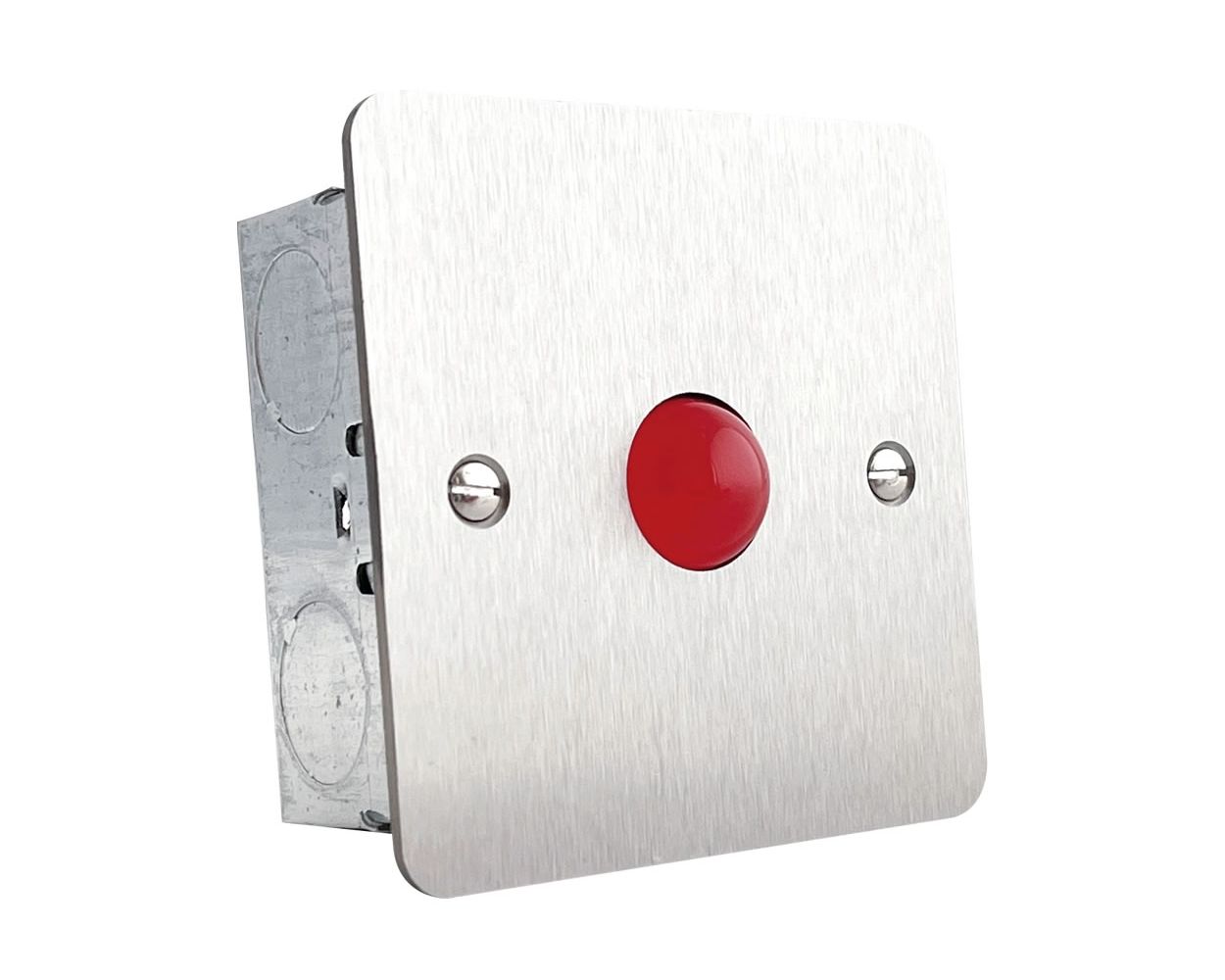

Stainless Steel flush fitting overdoor light and sounder with16mm Red Jumbo LED. There are separate terminals provided for the LED.
The LED and sounder current limit resistor is provided for 12 vdc operation.

  • Led Current - 50mA @12vdc
  • Switch Contacts - N/A
  • Sounder Current - 40mA @ 12vdc
  • Visual Indication - 1 x Red Jumbo LED
  • Integral Sounder Level - 90dB@10cm
  • Tamper - N/A
  • Material - Stainless Steel
  • Dimensions - 86mm x 86mm x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mounted using part no. S0610 listed below
  • Weight - 0.26kg
  • IP Rating - IP65 front side contact area
  • Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required
