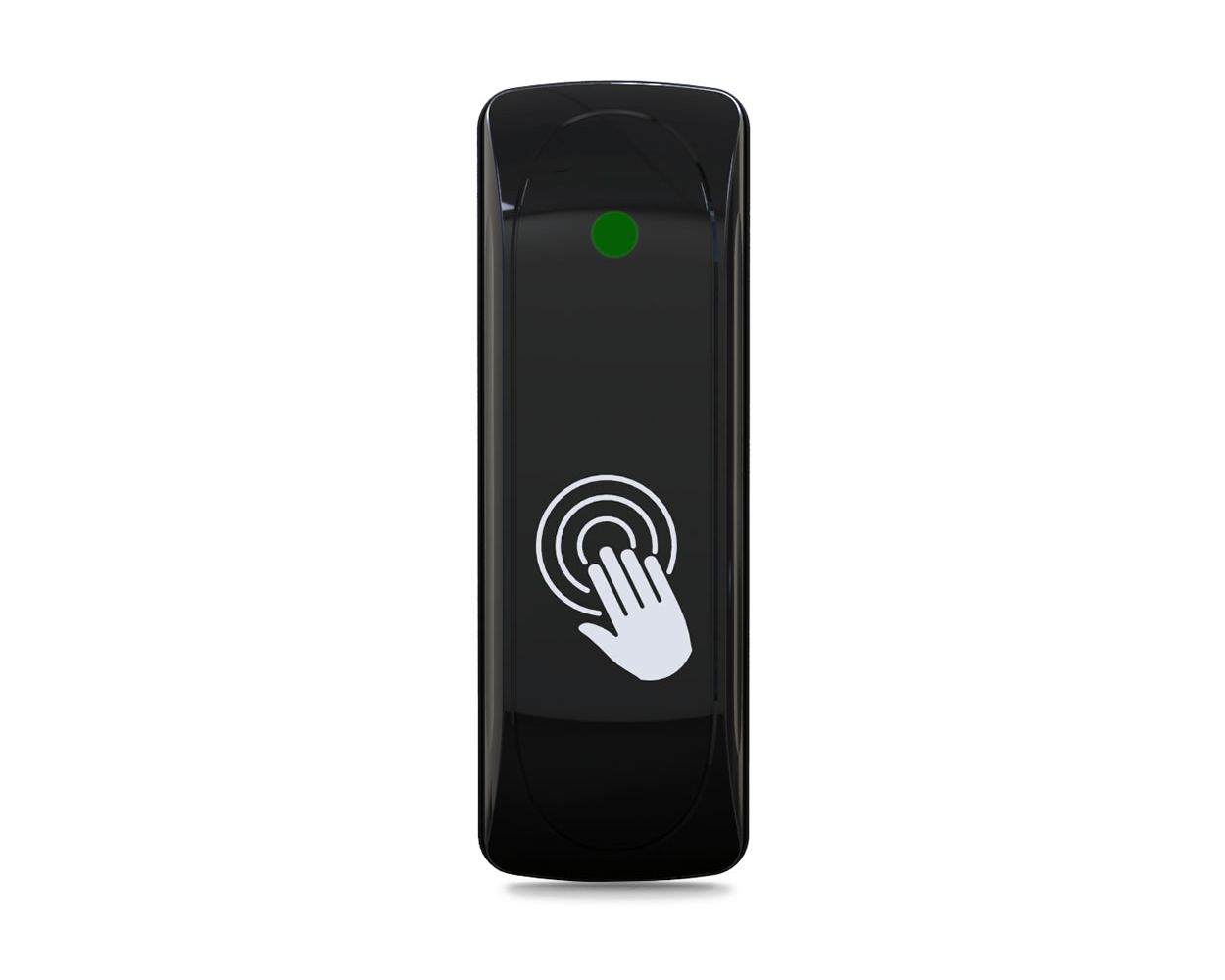

Touchless Door Activation Switch

The architrave style, low profile design facilitates a tidy installation on door frames or guiderails. J-Wave's touchless design reduces the spread of germs and improves accessibility in healthcare, retail and commercial settings. With a detection distance of up to 30cm and an ability to detect very fast hand movements in front of the switch body. J-Wave is made from a tough, polycarbonate material with a constantly illuminated LED so that the J-Wave can be easily located in dimly lit environments.

• Slim Design
• Eliminate Contamination
• Fast Reaction Time
• Tough & Illuminated
• IP 54 Rating
• Detection Method Active Infrared
• Detection Range 10-30cm ± 3-5cm
• Power Supply 12-30 VDC 12-24 VAC
• Power Consumption less than1.5 W
• Relay Output Relay Contact 1A/30VDC
• Relay Hold Time 1s-2s Pulse Mode
• Operating Temperature -20°C to +50°C

Dimensions H 117mm x W 40mm x D 19.5mm
