AIDALARM Mains Powered Disabled Toilet Alarm Kit

This mains-powered kit gives you a simple and reliable way to call for help in an emergency. It’s designed to meet the standards for disabled assistance systems and helps you stay compliant with BS8300, the Equality Act 2010, and Building Regulations Part M. Everything you need is included in the box (just add cable and fixings), making it quick to install and straightforward to use. Perfect for a wide range of settings — including disabled toilets, changing rooms, reception areas, interview rooms, and more.
Specification:

• BS8300 Compliant
• Controller with High Power Piezo Sounder
• Four selectable Warning Tones
• Mains Powered with 6 x AA standby batteries
• Integral power on LED
• Audible & Visual Signalling and indication
• Volt free changeover relay contacts enable remote signalling output
• Control panel button configurable functions - Silence, Reset or Disabled
• Controller Dimensions - 175 x 125 x 60 tapering to 50mm

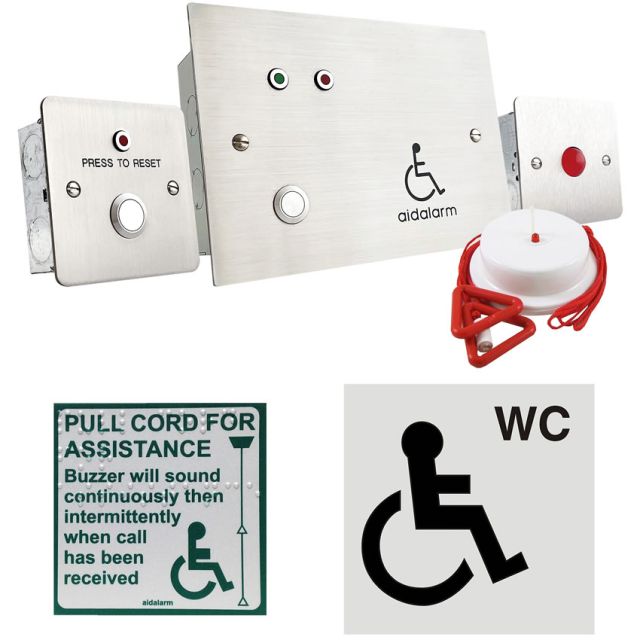

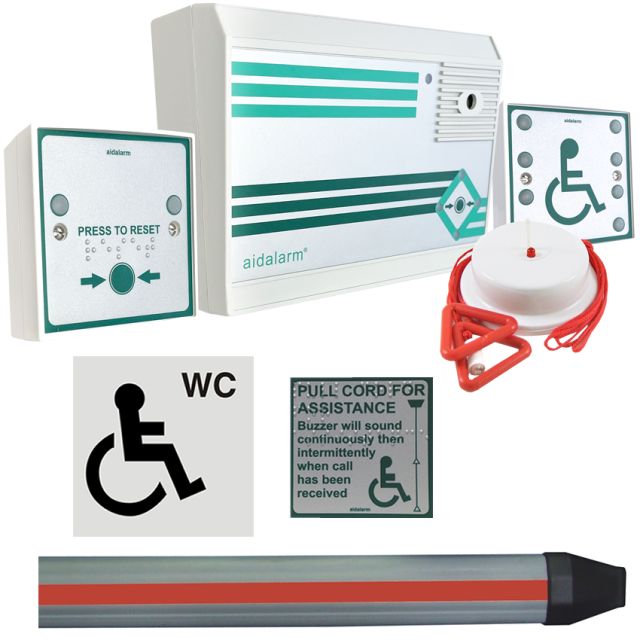

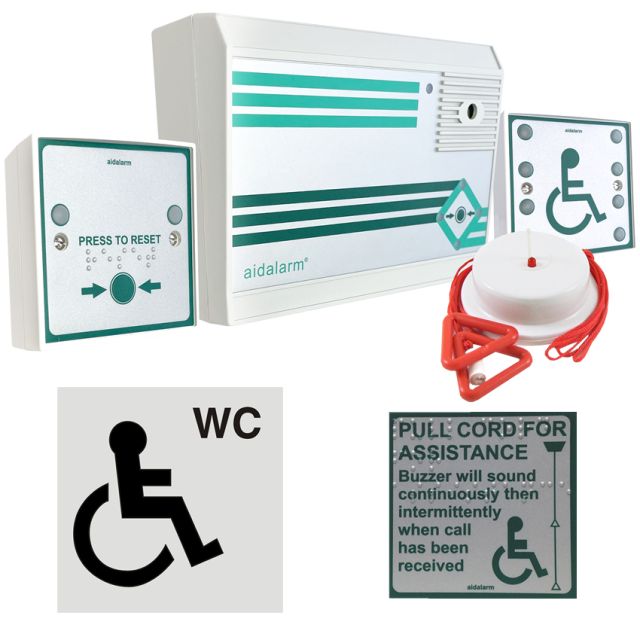

Mains powered kit includes:
1 x A600L Aidalarm controller
1 x S1600-R RED pull cord
1 x Pull cord instruction label with braille text
1 x S1708A reset button with braille text
1 x S1778A overdoor light/sounder with wheel chair symbol
6 x AA alkaline batteries

How the Aidalarm works
1. The Aidalarm controller should be sited where staff are located who can respond to an emergency call.
2. Ceiling pull cord and optional Dado panic strip or call buttons are situated in the toilet or other area where assistance may be required.
3. Pulling the cord or pressing the panic strip/call button generates an immediate audible/visual alarm at both the WC area and at the control panel. An LED illuminates on the pull cord giving the caller reassurance that the call has been placed.
4. The call can be silenced by pressing the button on the front of the control panel.
5. The audible indicators at the WC will bleep every 5 seconds to re-assure the caller.
6. Should the cord be pulled again while in the silenced state, the system will call again.
7. Non-attendance will cause the panel to bleep every 40 seconds as a warning.
8. The system can only be reset by the Press to Reset button located at or near the point of call.
