Multiguard 6 way indicator with individual zone reset
Several versions of our Multiguard general purpose alarm indicator panel are available. See the model comparison table below and then select the option you require from the drop down list above.
Please note: For orders of MG216100 and MG216110 being shipped outside of the UK, the back up battery will not be supplied due to shipping restrictions.

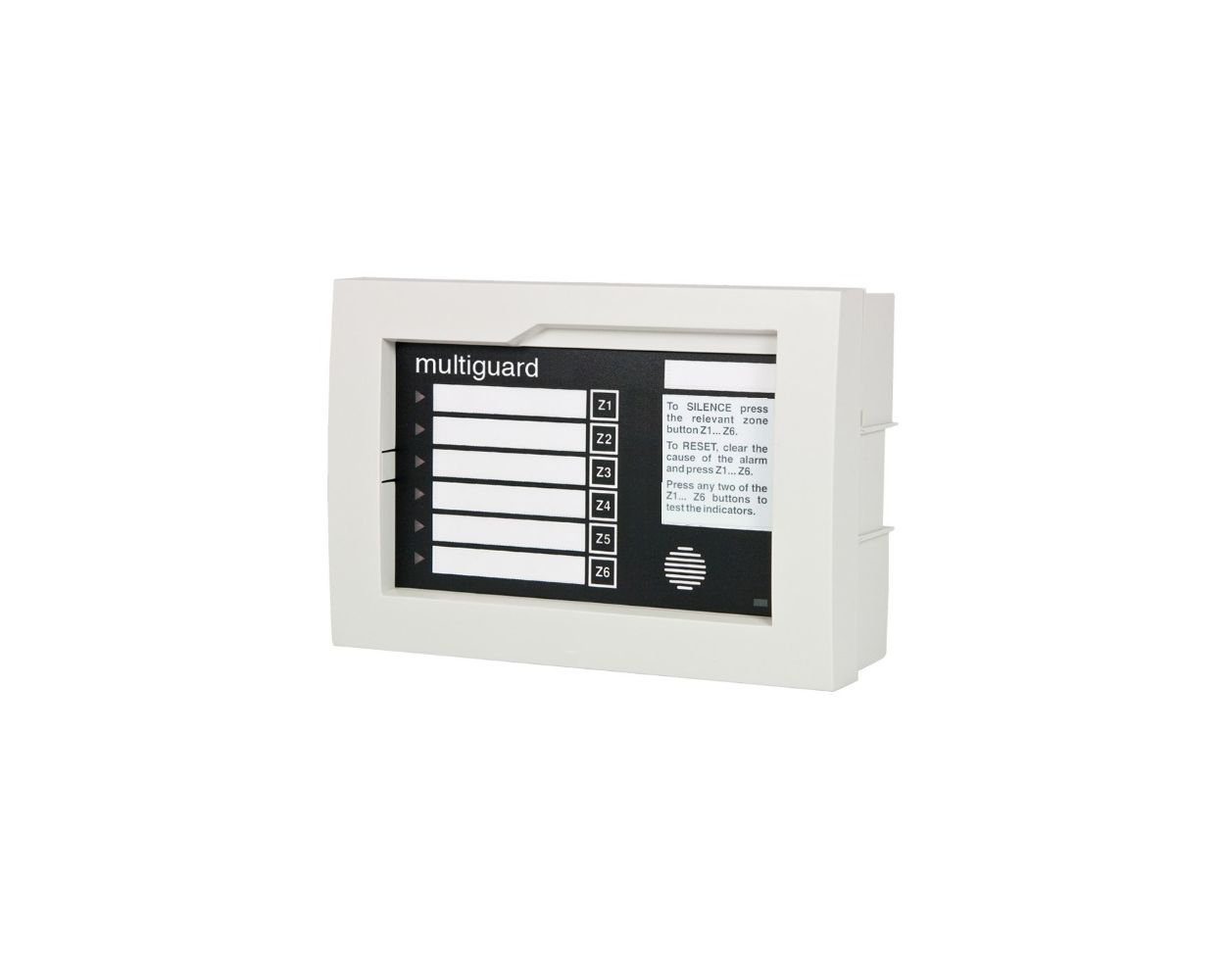

The Multiguard is a versatile six-zone alarm annunciator panel. Its modular enclosure design allows for easy scalability by stacking multiple units, making it suitable for a wide range of emergency alarm system requirements. The Multiguard is ideal for applications such as Perimeter Protection Systems, Personal Attack Monitoring, Fire Exit Door Monitoring, and Nurse Call Systems. Additionally, it is well-suited for various process monitoring needs, including Deep Freeze Alarms.
Specification
- Six zone alarm annunciator panel
- Look-a-like repeaters available
- Unique labelling system
- Individual silence & reset
- System operates on 12vdc or Integral PSU & Battery depending on model
- Zone isolation by keyswitch models MG216010 & MG216110
- Integral piezo sounder
- Open or closed circuit inputs
- DPCO global output relay
- LED test option

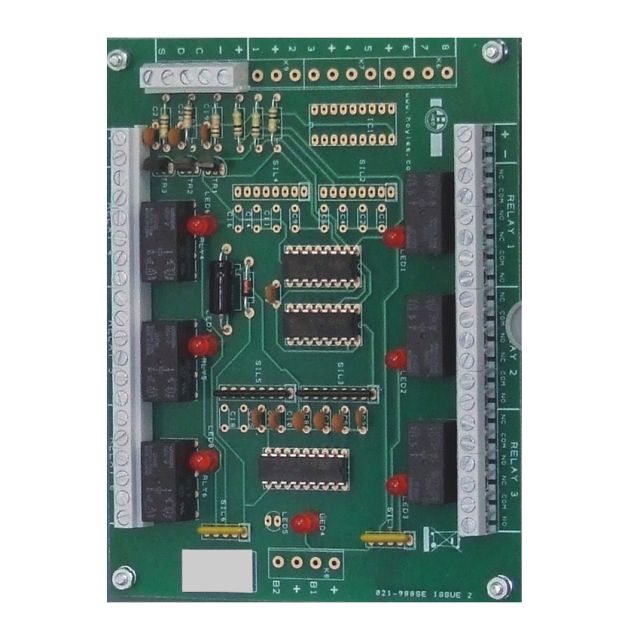

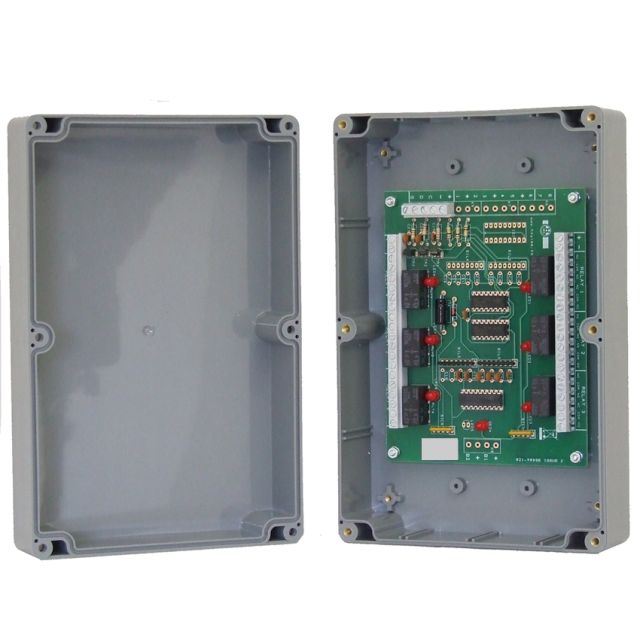

- Output to connect relay cards available separately
- Perimeter protection systems
- UKCA and CE marked, ROHS compliant
- Manufactured in the Uk
- Dimensions 197 x 138 x 72mm
Multiguard Model Comparison
| Code | MG212000 | MG212100 | MG222000 | MG216000 | MG216100 | MG216010 | MG216110 | MG226000 |
| Type | Master no PSU | Master c/w PSU | Repeater for MG212XXX | Master no PSU | Master c/w PSU | Master no PSU | Master c/w PSU | Repeater for MG216XXX |
| No of Zones | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Silence Button | Global | Global | Global | 1 per zone | 1 per zone | 1 per zone | 1 per zone | 1 per zone |
| Reset Button | Global | Global | Global | 1 per zone | 1 per zone | 1 per zone | 1 per zone | 1 per zone |
| Zone Isolate | No | No | No | Optional | Optional | Yes | Yes | Optional |
| Integral PSU | No | 12vdc 200ma | No | No | 12vdc 200ma | No | 12vdc 200ma | No |
| Battery | No | 12v 0.8Ahr | No | No | 12v 0.8Ahr | No | 12v 0.8Ahr | No |
| Output Relay | Global DPCO | Global DPCO | No | Global DPCO | Global DPCO | Global DPCO | Global DPCO | No |
| Lamp Test | No | No | No | Yes | Yes | Yes | Yes | Yes |
| Keyswitch | No | No | No | No | No | Yes | Yes | No |
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | MG216XXX |
| Associated Product Codes | MG216000, MG216100 MG216010, MG216110 MG226000 |
| Warranty | 3 Years |
| - |  Facia Insert for MG216XXX |
| - | Master Installation Instructions for MG216XXX |
| - | Product Information Sheet for MG216XXX |
| - |  Repeater Installation Instructions for MG212XXX |
