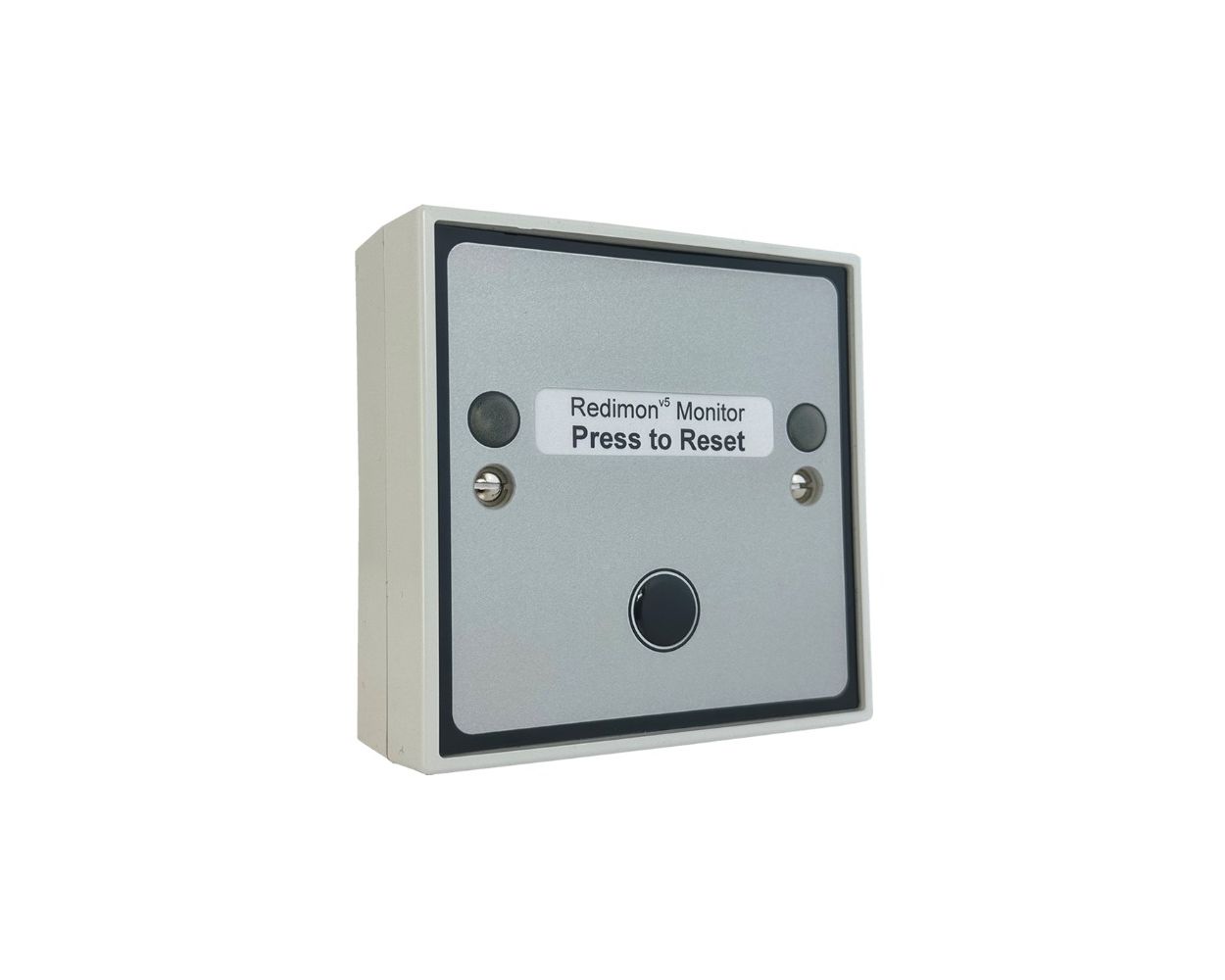

Redimon v5 12/24vdc powered Panic Strip monitor

REDIMON is a unit which can fully monitor two open circuit momentary devices such as Dado Panic Strip, push buttons or foot switches and gives volt free changeover contacts for both alarm and fault conditions. An end of line resistor (6k8) is fitted at the remote ends of Dado Panic Strip. Pressing the Dado Panic Strip creates a short circuit which will be detected as an alarm condition. If the Dado Panic Strip becomes disconnected in any way a fault condition is generated. An integral reset button is used to reset the unit after an alarm event.
Status LEDs are provided, normally a green LED would be illuminated for system healthy, the red LED indicates an alarm, and alternate flashing of the red and green LEDs would indicate a fault condition.
Features

• Powered by 12 or 24vdc
• End Of Line EOL resistor (6k8)
• Dual 6k8 Inputs
• Double Press Option
• Alarm Relay Output
• Fault Relay Output
• Dado Panic Strip LED driver output
• Reset Button
• LED Indicators
• Uses an Open circuit System(such as Dado Panic Strip)
• Secures Open Circuit Devices
• Dimensions 87 x 87 x 36mm

The REDIMON gives a DC output for driving strips of LEDs in Dado Panic Strip, these LEDs can operate in 3 different ways which is controlled by adjusting the potentiometer to positions 1, 2 or 3.
Position 1: The LEDs will be on then when the unit goes into alarm the LEDs will start to flash.
Position 2: The LEDs are off then when the unit goes into alarm the LEDs will turn on.
Position 3: The LEDs are off, then when the unit goes into alarm the LEDs will begin to flash.
