Dado Panic and Affray Switch Strip

From £82.33 Ex Vat
In stock
Only %1 left
Product code
RPD00000
Please Note: Lead time for this item is 10-14 working days

Once supplied Dado panic strip cannot be altered in length. It is therefore critical that sizes are correct when ordering. See Ordering Information in Technical Info tab

By default Dado Painc Strip is supplied in Red and Grey colour. Please contact us if you require Dado in Blue.

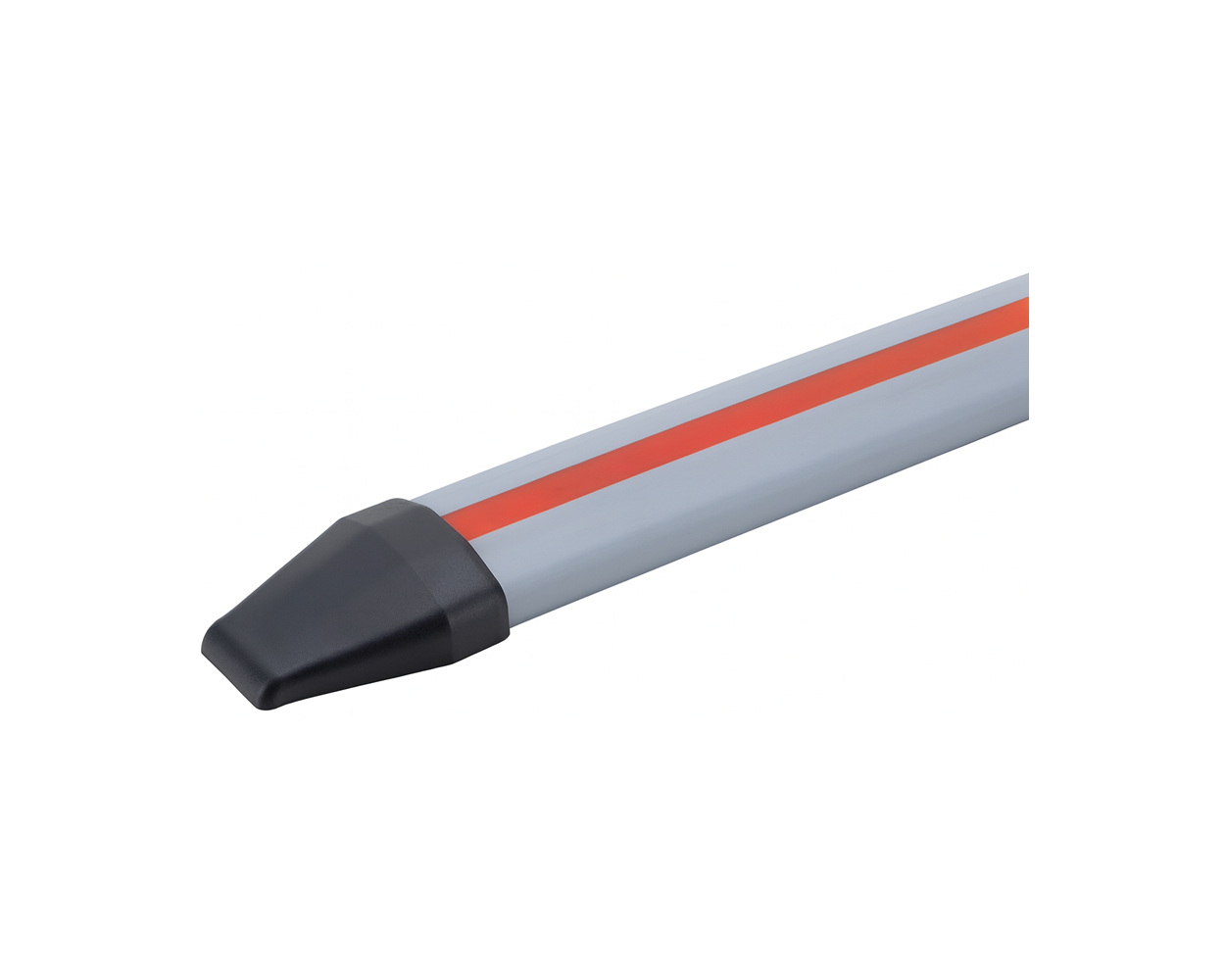

DaDo Panic Strip is a switch strip en-cased in a high-durability housing for use as a panic or affray alarm. Ideal where people may need to signal for help or assistance, it can be operated along its entire length. The DaDo Panic Strip comprises of four main components, the switch strip, tamper-resistant top cover, aluminum mounting rail and a choice of end-caps.
The switch itself is a normally open switch and has flying leads on both ends for connection. Dado can be connected to a variety of Hoyles products including the Aidalarm disabled toilet alarm and the Multiguard indicator range to create a more comprehensive system. We recommend the use of our Redimon monitor unit which will monitor panic strip for both alarms and faults and provide relay outputs for both conditions.

  • Available in long lengths
  • Tamper resistant
  • Waterproof
  • Supplied with 100mm flying leads at each end of strip
  • Tried and tested technology
  • Easy to install
  • Channel pre-drilled and countersunk
  • Available in Grey/Red & Blue

End-caps - Each Dado Strip is supplied with 2 x Trunking end-caps designed to fit 25 x 15mm trunking for installations where cables are run externally and 2 x Closed end-caps for installations where cables have been embedded. If you require additional end-caps they can be ordered using Code - RPDEC

Flexible corners - Flexible corners allow the DaDo Panic Strip to flow around internal and external corners without a break. If your require Flexible corners they can be ordered using Code - RPDFC

A selection of standard lengths are available which can be ordered by selecting your required option from the drop down list above, non standard lengths are available to special order,please call for information.

More Information
Country of Origin UK
Condition New
SKU RPD00000
Associated Product Codes *Made to order*
Lead time up to
10-14 working days
Warranty 1 Year
- Installation Instructions for Dado
- Product Information Sheet for Dado
- Ordering Information Sheet for Dado
- Termination Details for Dado
