6.35mm jack plug socket for use with S1631
£23.48
Ex Vat
In stock
Product code
S1732P

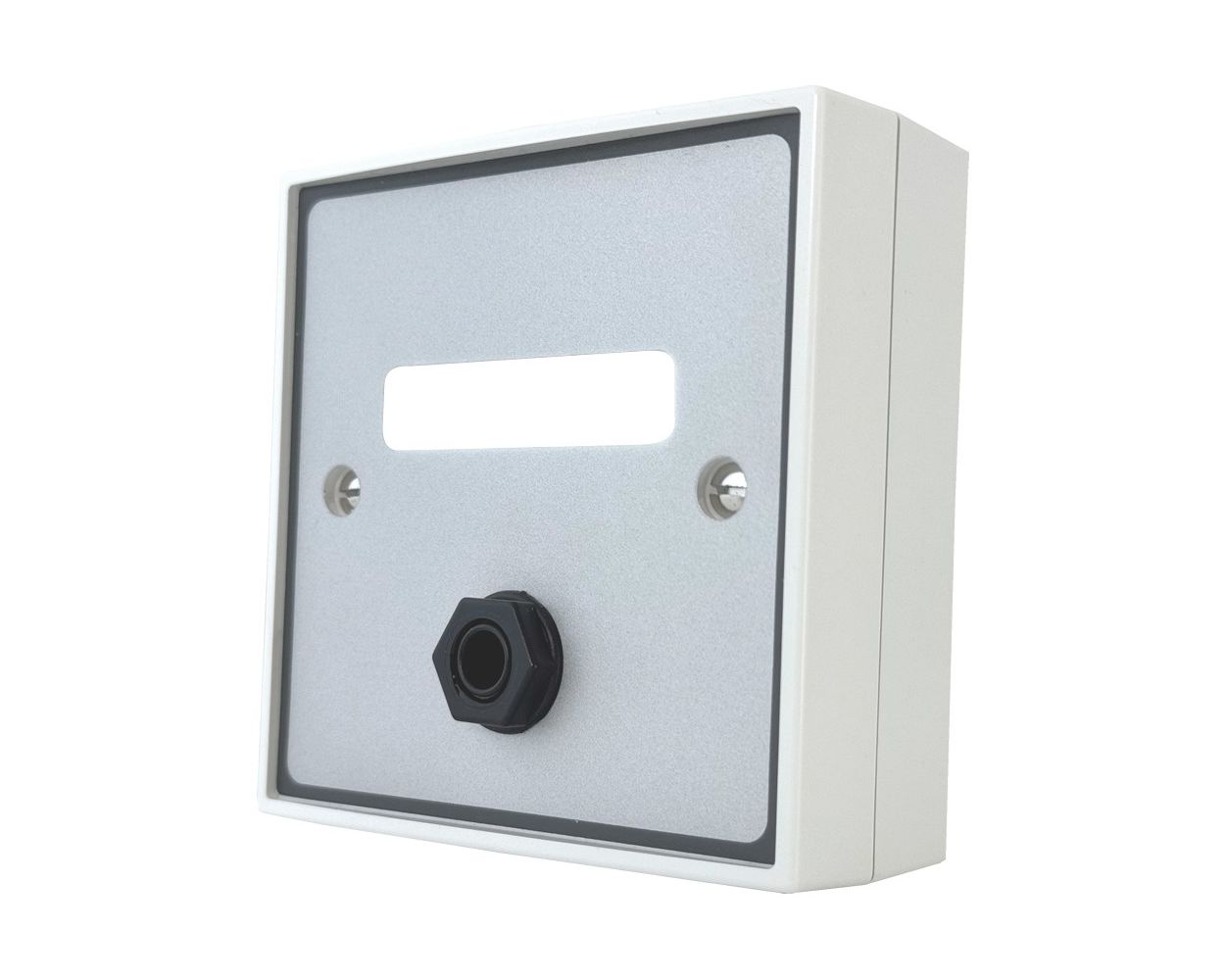

6.35mm jack plug socket for use with S1631
White plastic single gang box with 6.35mm (1/4in) jack plug socket for use with S1631.
The jack socket is wired to present a closed circuit when the jack plug is removed. If this feature is not required cut the wire link.
- Specification
- Led Current - N/A
- Sounder Current - N/A
- Switch Contacts - 1A 24vdc
- Visual Indication - N/A
- Integral Sounder Level - N/A
- Tamper - N/A
- Material - White ABS
- Weight - 0.15kg
- 87 x 87 x 36mm (Surface mount)
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
- Back box supplied for surface mount
- Approvals - CE and RoHs compliant
- Can be Semi Flushed onto standard flush back box (Not supplied)
- Mark resistant decal
Anti tamper screws available, see related products below
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1732P |
Associated Product Codes | S1732P |
Warranty | 3 Years |
- | Installation Instructions for S1732P |
- | Product Information Sheet for S1732P |
