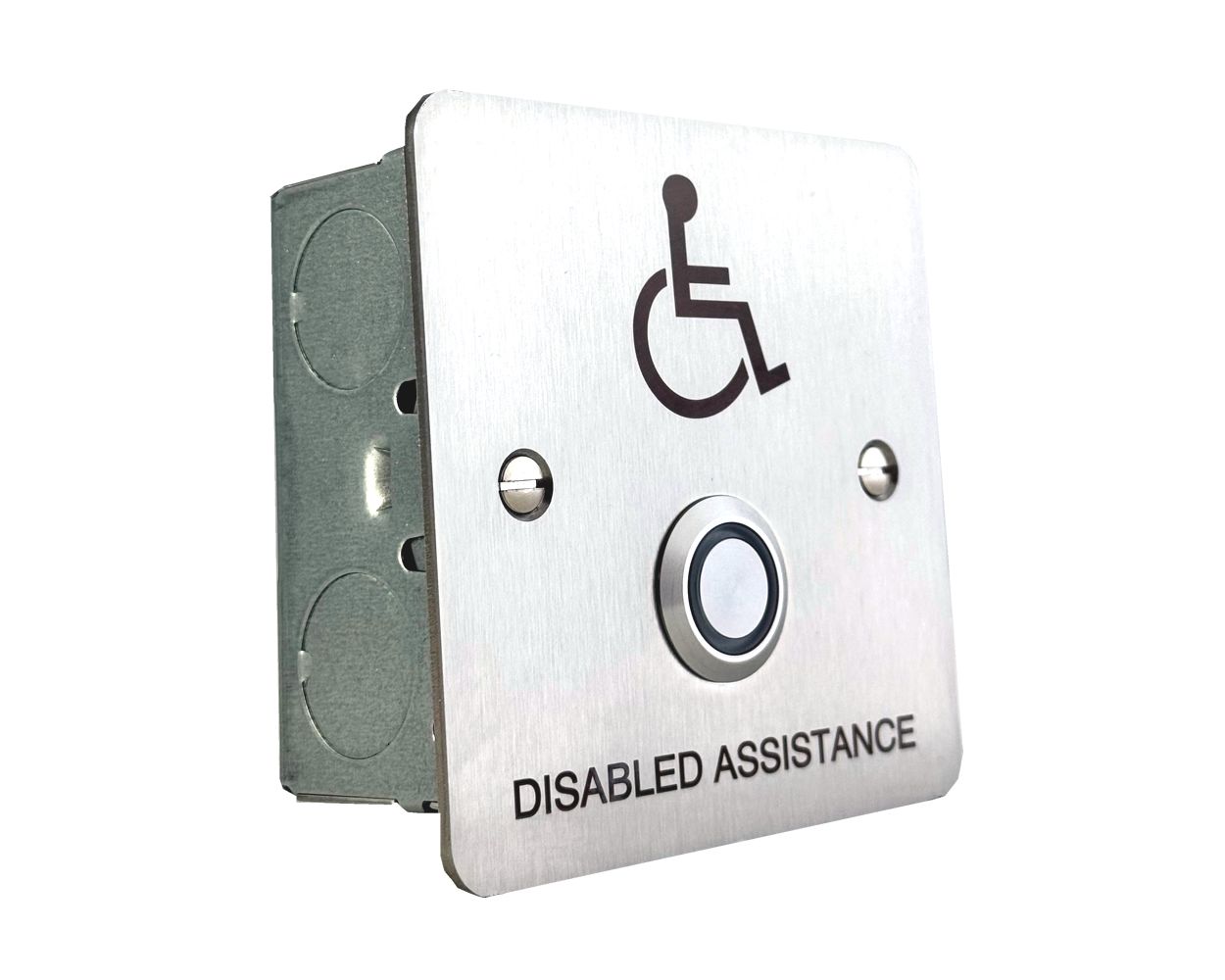

Call button with Halo LED Stainless steel, Disabled Logo

Flush fitting stainless steel engraved Disabled Assistance call button. Supplied with a green halo illuminated vandal resistant button. This is a non-latching unit with single pole change over contacts. Separate terminals are provided for the LED. The LED current limit resistor is provided for 12 vdc operation.

Specification

• Led Current - 40mA@12vdc
• Switch Contacts - Single pole normally open 1A@ 30vdc
• Sounder Current - N/A
• Visual Indication - 1 x Green Halo LED
• Integral Sounder Level - N/A
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Dimensions - 86 x 86 x 2mm - Facia
• 38mm galvanised back box supplied
• Surface mounted using part no. S0610 listed below
• Weight - 0.25kg
• IP Rating - IP65 front side contact area
• Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required
Anti tamper screws available, see related products below
