Customisable Multi Function button with Sounder and LEDs

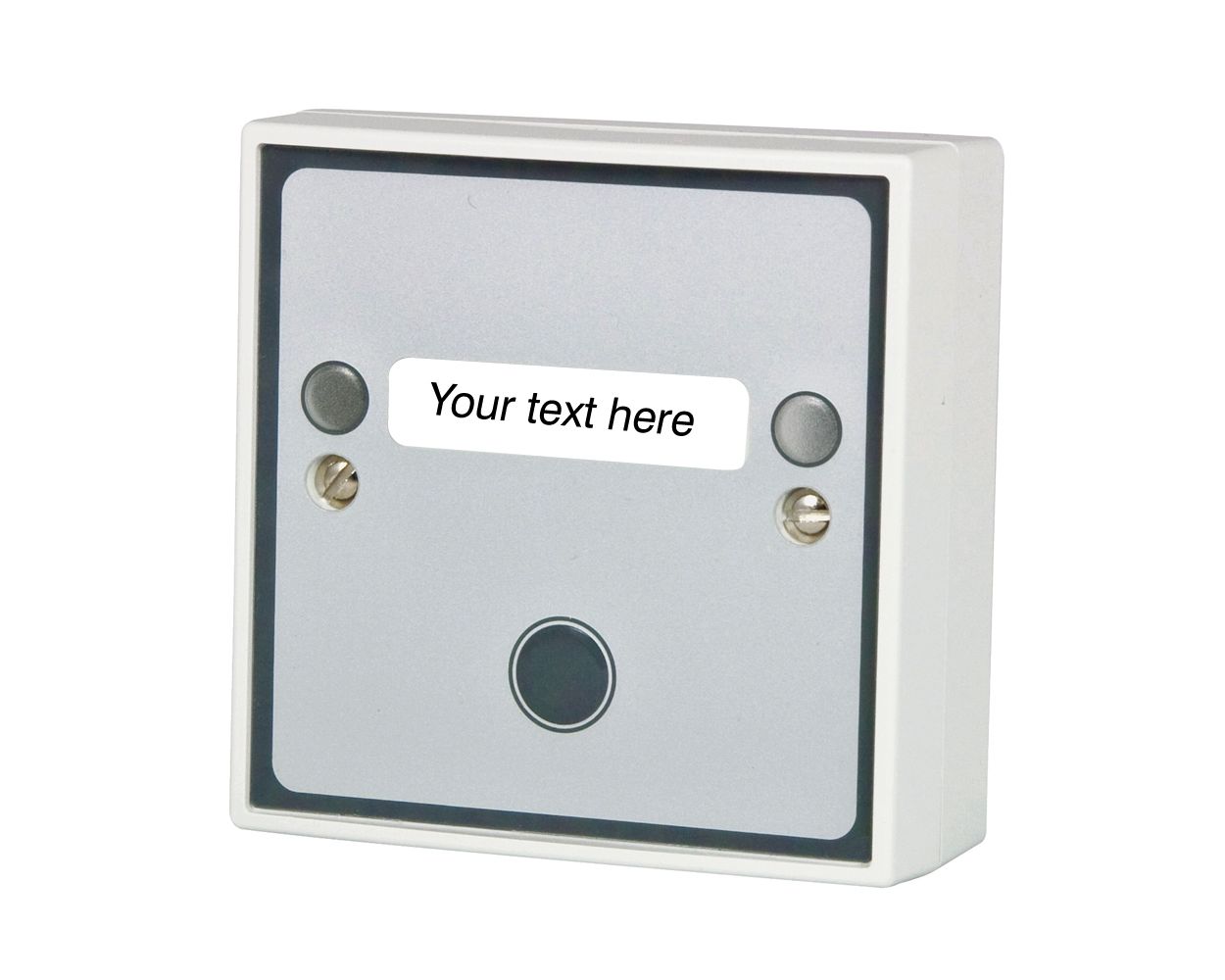

Wall mounted button in white ABS complete with a single gang low profile mounting box. This is a MULTI-FUNCTION button that provides DPCO contacts rated at 2A 30vdc for use with equipment such as maglocks and door strikes. The function of the button can be changed. (Momentary, Latching, Delayed latch and Commutate) Two LEDs and an integral sounder are provided. The LEDs indicate when relay is switched, the sounder bleeps as relay changes. The LEDs are available in RED, BLUE, GREEN or YELLOW. This product requires a continuous supply of 12vdc.

Specification

• Quiescent Current - 30mA @12vdc
• Operating Current - 60mA @12vdc
• Switch Contacts - 2A 30vdc
• Visual Indication - 2 x high brightness LEDs
• Integral Sounder
• Tamper - N/A
• Material - White ABS
• Weight - 0.12kg
• 87 x 87 x 36mm (Surface mount)
• IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
• Approvals - CE and RoHs compliant
• Back box supplied for surface mount
• Can be Semi Flushed onto standard flush back box (Not supplied)
• Mark resistant decal
• Tactile button
• Unique on site labelling system

Anti tamper screws available, see related products below
