Flush contact for Steel Doors Grade 2 with 5m cable
£26.94
Ex Vat
In stock
Product code
DCS/AR065M

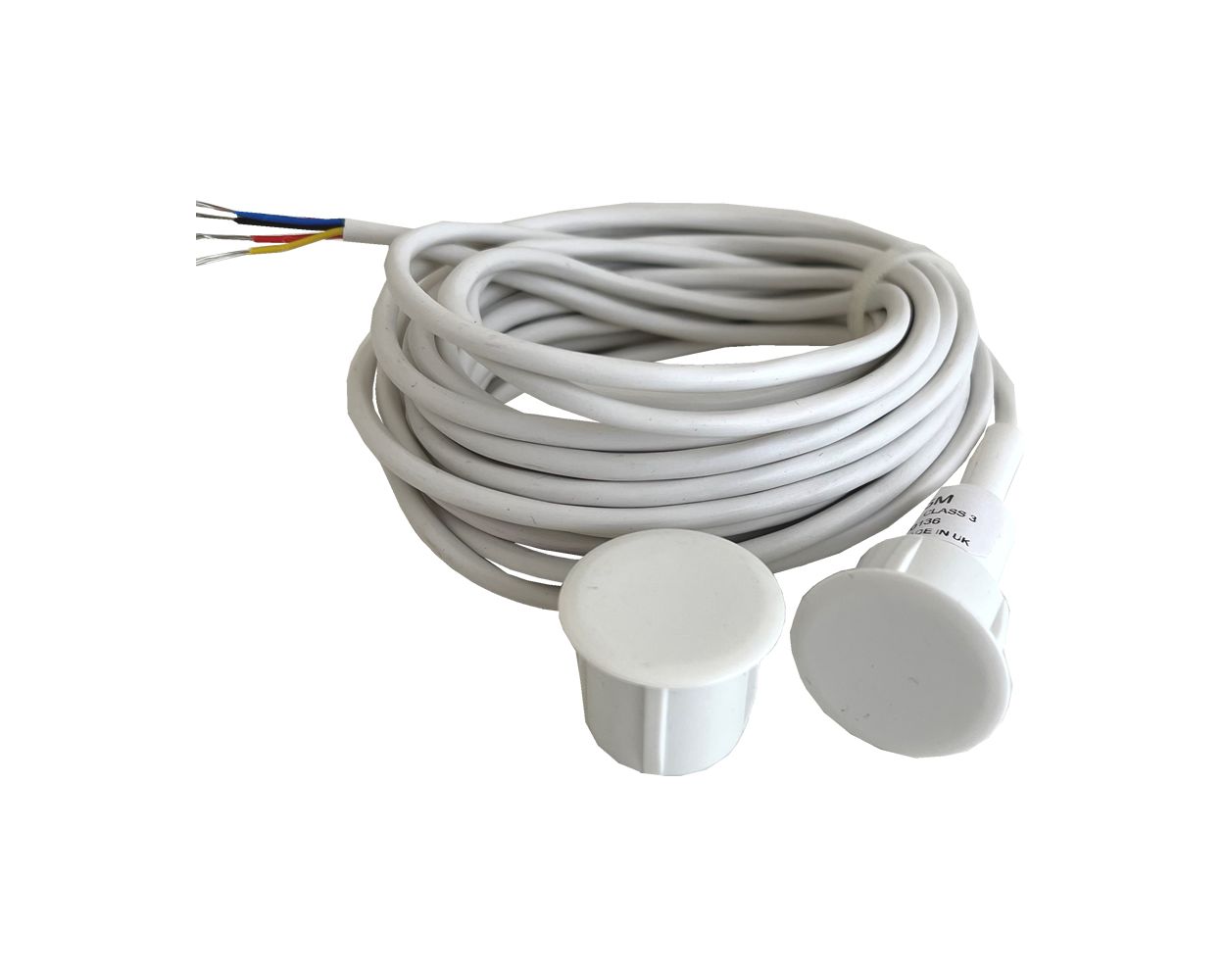

Push fit, single reed flush contact.
This contact is designed in such a way that magnetic interference from surrounding metals is reduced, allowing it to be used in steel framed doors. The barrel of this contact holds four sloped crush ribs allowing it to easily slide into a 20mm diameter recess, locking at the contact plate.
- Operating Gap:15- 20mm Approx
- Contact: Single Reed Normally Closed
- Voltage Range: 1 to 100vdc 125vac Max
- Switching Current: 500mA Max DC - 500mA Max AC
- Temperature Range: -40degC to +50degC
- Colour: White
- Environmental Class: 3
- Tamper: Tamper Loop
- Dimensions: Refer to Technical Drawing
- Fly Lead: 5m 4 core
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | DCS/AR065M |
| Associated Product Codes | DCS/AR065M |
| Warranty | 1 Year |
| - |  Product Information Sheet for DCS/AR065M |
