Flush Door Contact with 3m potted cable - white
£18.12
Ex Vat
In stock
Product code
DCS/F3M

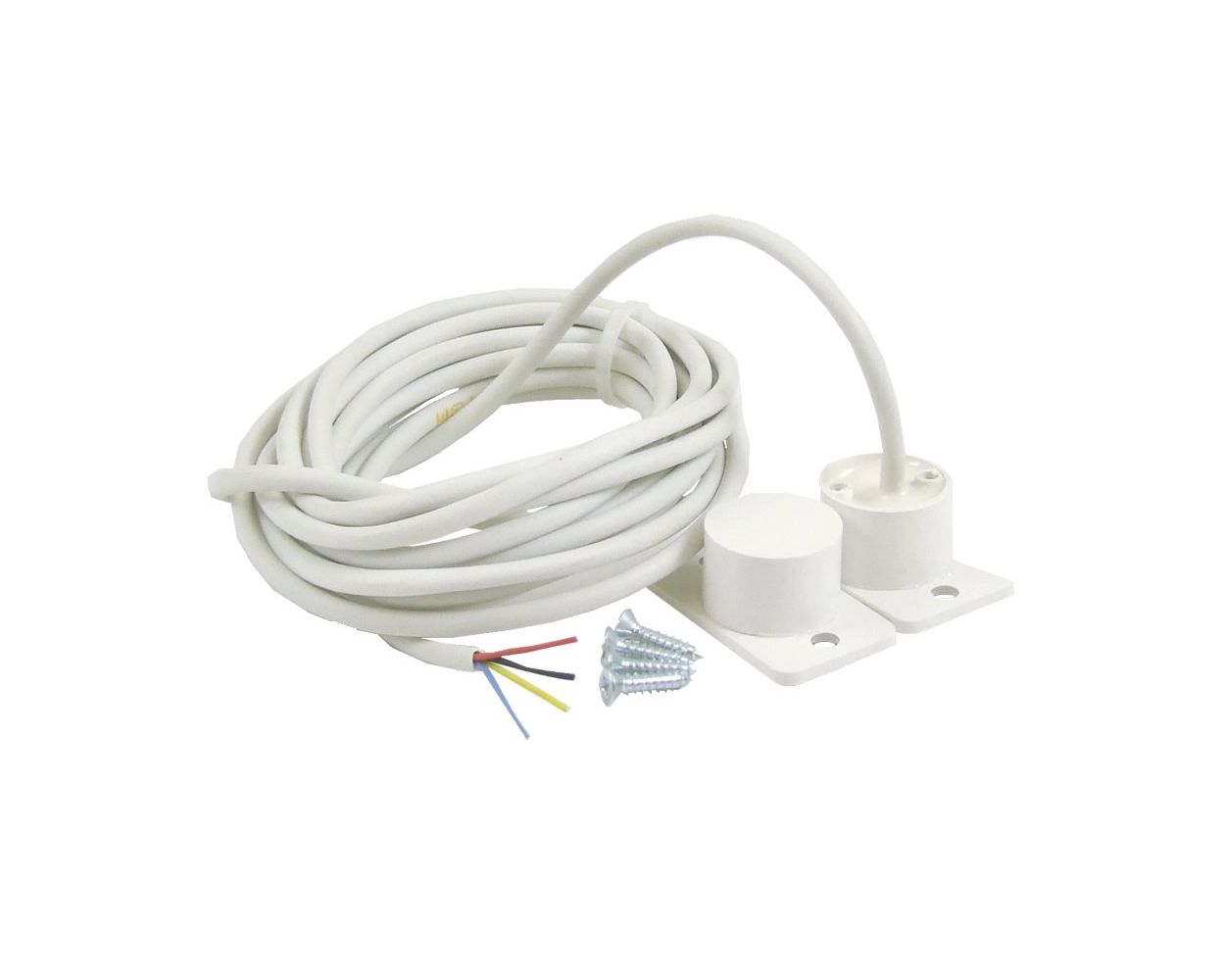

Flush Door Contact with 3m cable potted - white
A single reed flush contact designed to meet the requirements of Security Grade 2. Fully sealed with a potting compound, allowing it to work to Environmental Class III. As this contact is a sealed unit, it is wired with the provided fly lead instead of terminals. Two cores handle the internal switch, while the remaining two function as a tamper loop.
- Operating Gap: 14mm Approx
- Contact: Single Reed
- Voltage Range: 100vdc 125vac Max
- Switching Current: 500mA Max DC - 500mA Max AC
- Temperature Range: -40degC to +50degC
- Colour: White
- Environmental Class: III
- Tamper: Wire Loop
- Barrel Dimensions: 20mm diameter -19mm deep
- Plate Dimensions: 22mm x 36mm x 2.2mm
- Supplied with mounting screws
- Fly Lead: 3m 4 core
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | DCS/F3M |
| Associated Product Codes | DCS/F3M |
| Warranty | 1 Year |
| - |  Technical Drawing for DCS/F3M |
Write Your Own Review
Check items to add to the basket or
-

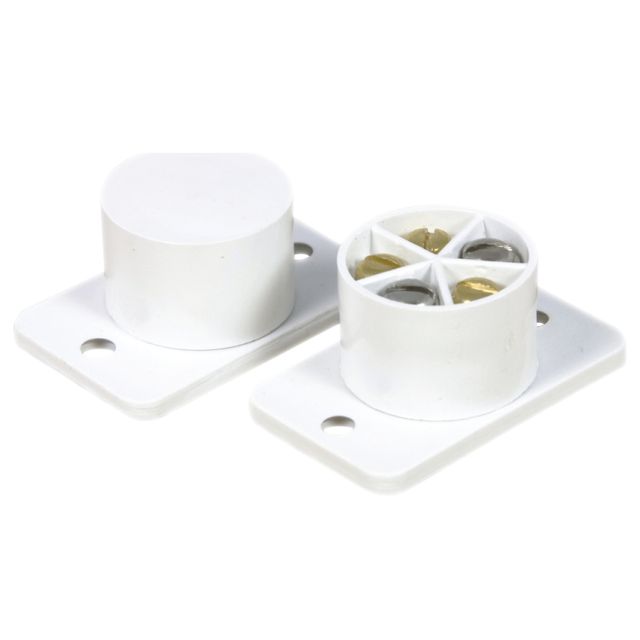

![Standard door contact flush mount - white]()
