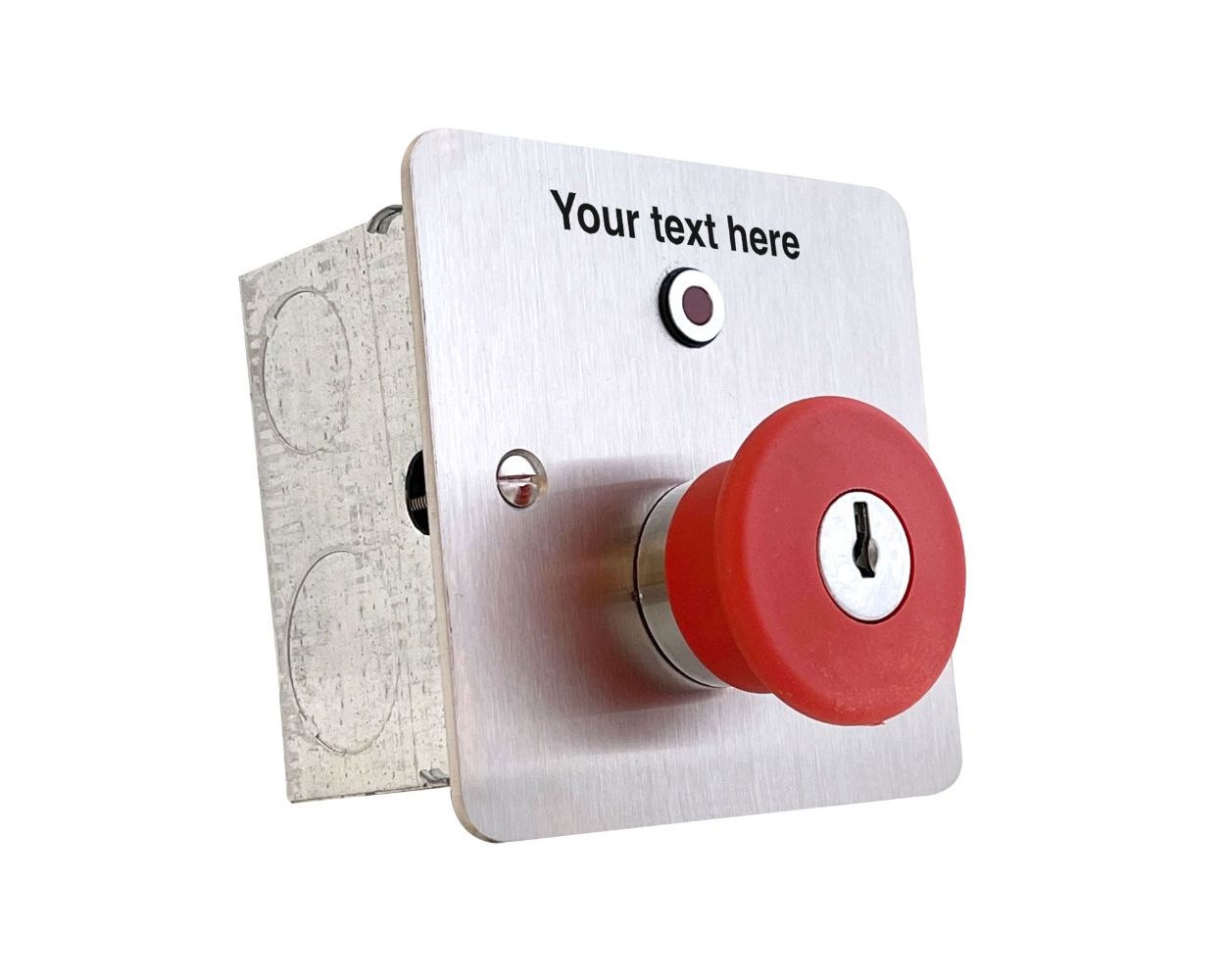

Mushroom headed latching button with LED, Key Release and Custom Text

Mushroom Head Button Key Release, a 5mm flat red LED in a polished chrome bezel configured for 12vdc operation is also fitted to the single gang stainless steel plate. Supplied with normally closed and normally open contacts. Supplied with lasered text of your choice. Specify text required when ordering - 45 characters maximum.

Specification

• Led Current - 20mA @12vdc
• Switch Contacts - 1 x N/O 1 x N/C both 500mA @30vdc
• Sounder Current - N/A
• Visual Indication - 1 x red LED
• Integral Sounder Level - N/A
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Permanently laser marked
• Ideal for hygienic environments
• Dimensions - 86 x 86 x 2mm - Facia
• 47mm galvanised back box supplied
• Surface mounted using part no. S0610-50 listed below
• Weight - 0.34kg
• IP Rating - IP65 front side contact area
• Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required. Anti tamper screws available, see related products below
