Open - Close buttons with door status LEDs
£100.60
Ex Vat
In stock
Product code
S1728S
Open - Close buttons with door status LEDs

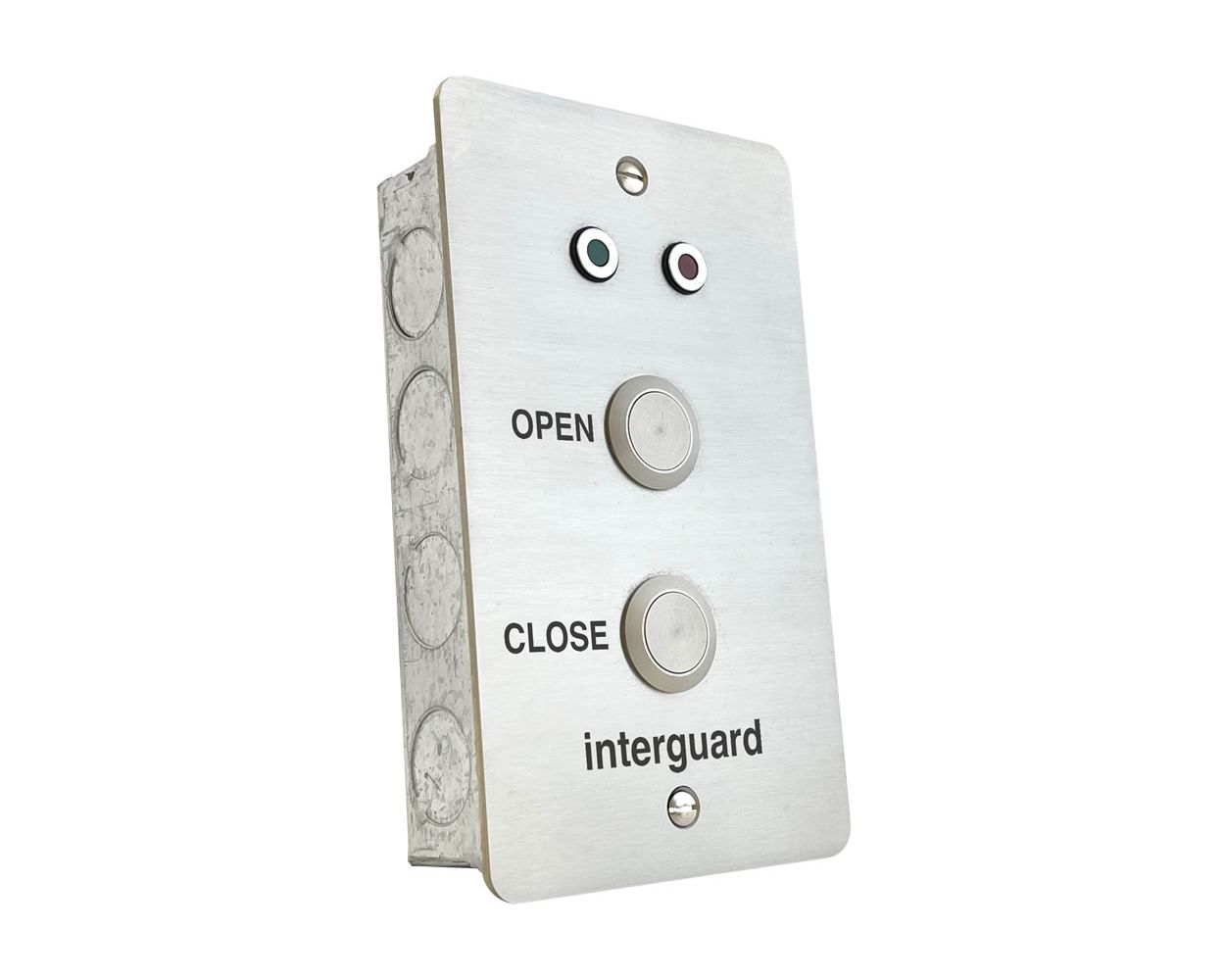

Two stainless steel vandal resistant push buttons together with one red and one green LED on a double gang stainless steel plate engraved with 'Open' and 'Close'. Specifically designed for use with our range of Interguard door interlock controllers when interlocking of roller shutters, powered doors or gates is required. The LED current limit resistor is provided for 12 vdc operation.
- Specification
- Led Current - 20mA per LED@12vdc
- Sounder Current - N/A
- Switch Contacts - Single pole normally open 2A@ 30vdc
- Visual Indication - 2 x LEDs one red one green
- Integral Sounder Level - N/A
- Tamper - N/A
- Material - 316 Grade Stainless Steel
- Dimensions -145 x 86 x 2mm - Facia
- 38mm galvanised double gang back box supplied
- Weight - 0.50kg
- Approvals - CE and RoHs compliant
- IP Rating - IP65 front side contact area
Weather gasket Code: WG2 is available for the rear of the plate if required
Anti tamper screws available, see related products below
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1728S |
| Associated Product Codes | S1728S |
| Warranty | 3 Years |
| - |  Installation Instructions for S1728S |
| - | Product Information Sheet for S1728S |
