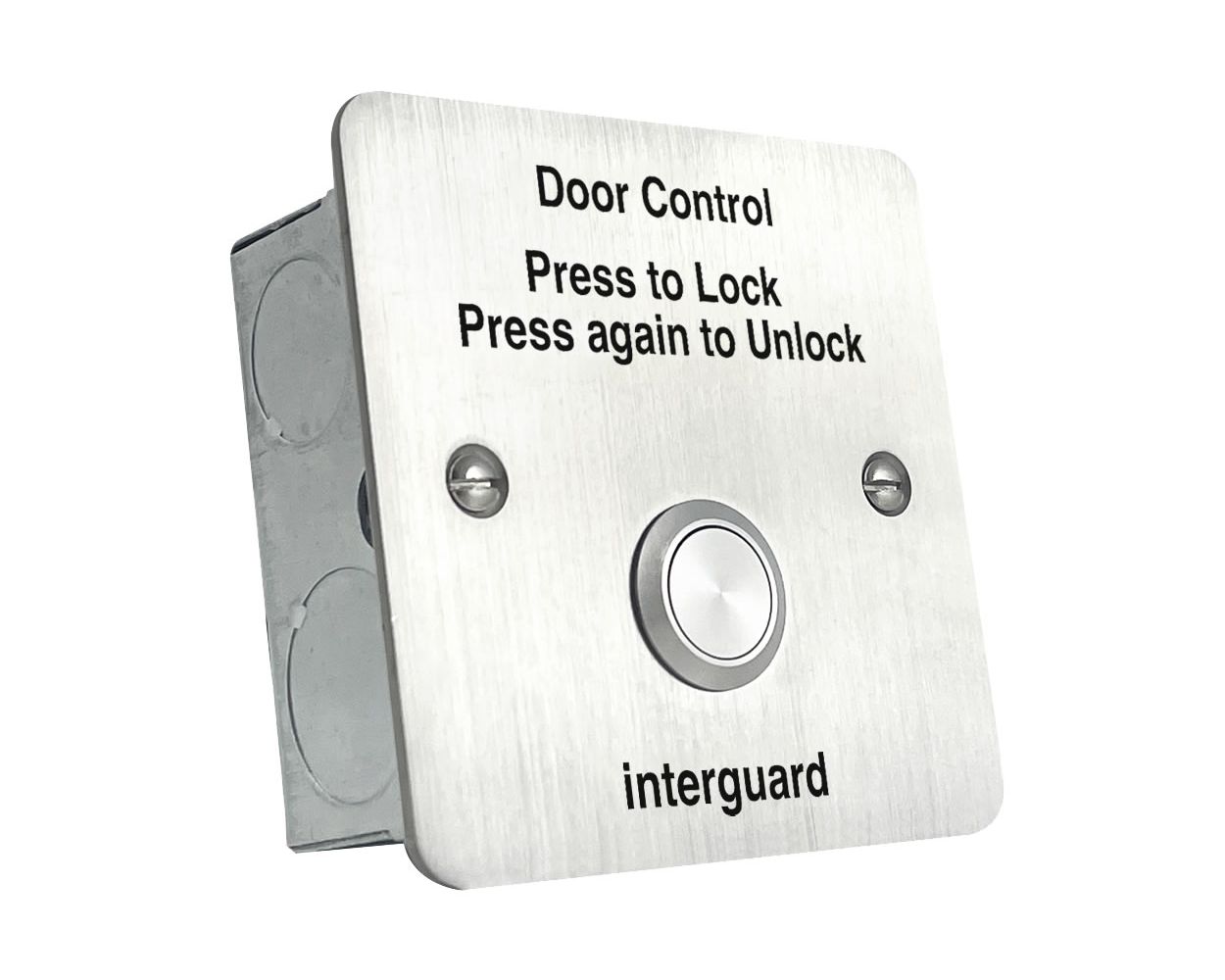

Press to Lock - Unlock Privacy Button

A stainless steel vandal resistant push button on a single gang stainless steel plate engraved 'Press To Lock - Press again to Unlock'.
Specifically designed for use with our range of Interguard door interlock controllers.

Specification

• Led Current - N/A
• Sounder Current - N/A
• Switch Contacts - Single pole normally open 2A@ 30vdc
• Visual Indication - N/A
• Integral Sounder Level - N/A
• Tamper - N/A
• Material - 304 Grade Stainless Steel
• Dimensions - 86mm x 86mm x 2mm - Facia
• 38mm galvanised back box supplied
• Surface mounted using part no. S0610 listed below
• Weight - 0.25kg
• IP Rating - IP65 front side contact area
• Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required
