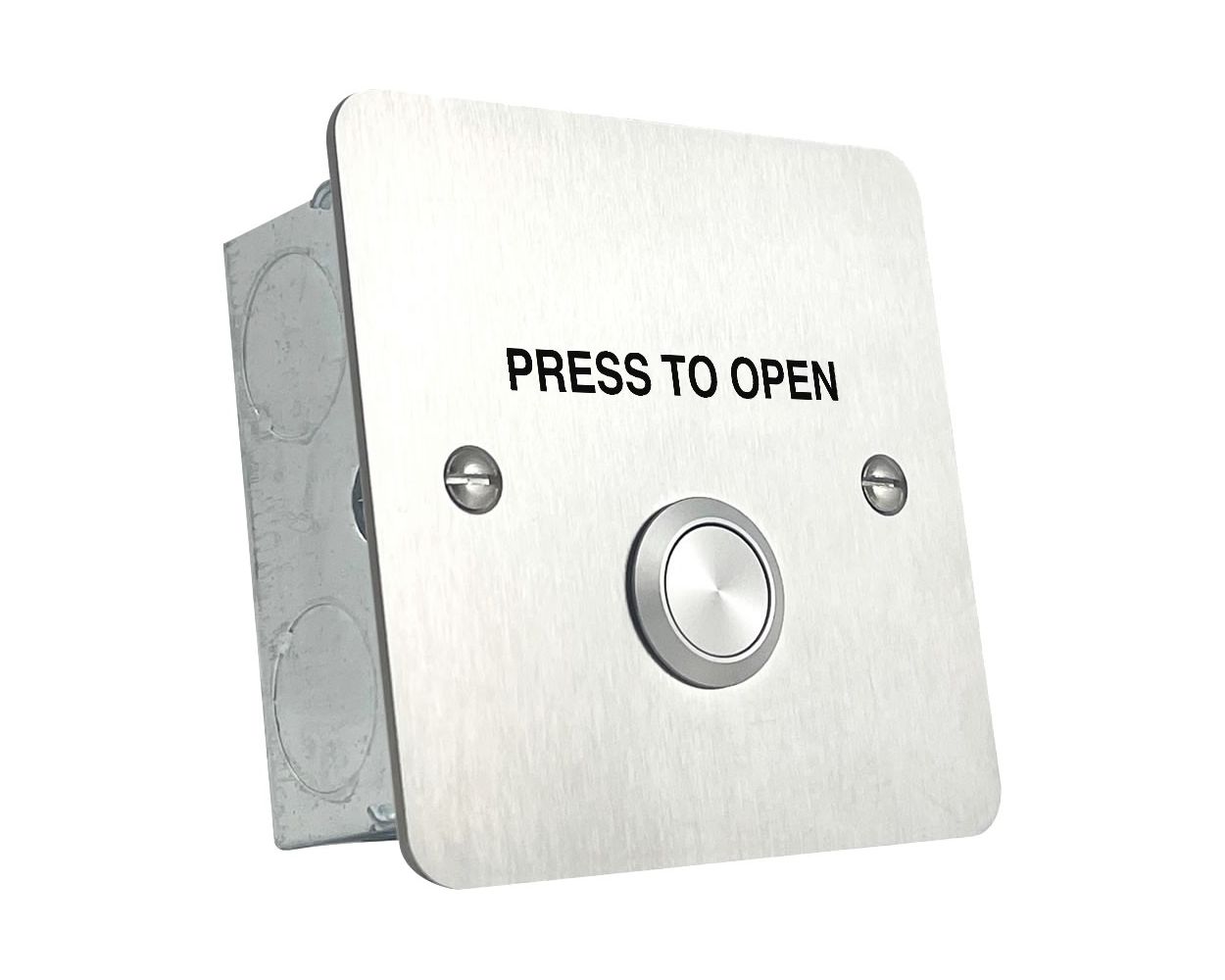

Press to Open button Stainless Steel

Flush Fitting stainless steel engraved Press to Open button with vandal resistant button. This is a single pole non-latching unit with normally open contacts. Suitable for use with access control systems etc.

Specification

• Led Current - N/A
• Switch Contacts - Single pole normally open 2A@ 30vdc
• Sounder Current - N/A
• Visual Indication - N/A
• Integral Sounder Level - N/A
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Dimensions - 86 x 86 x 2mm - Facia
• 38mm galvanised back box supplied
• Surface mounted using part no. S0610 listed below
• Weight - 0.25kg
• IP Rating - IP65 front side contact area
• Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required
Anti tamper screws available, see related products below
