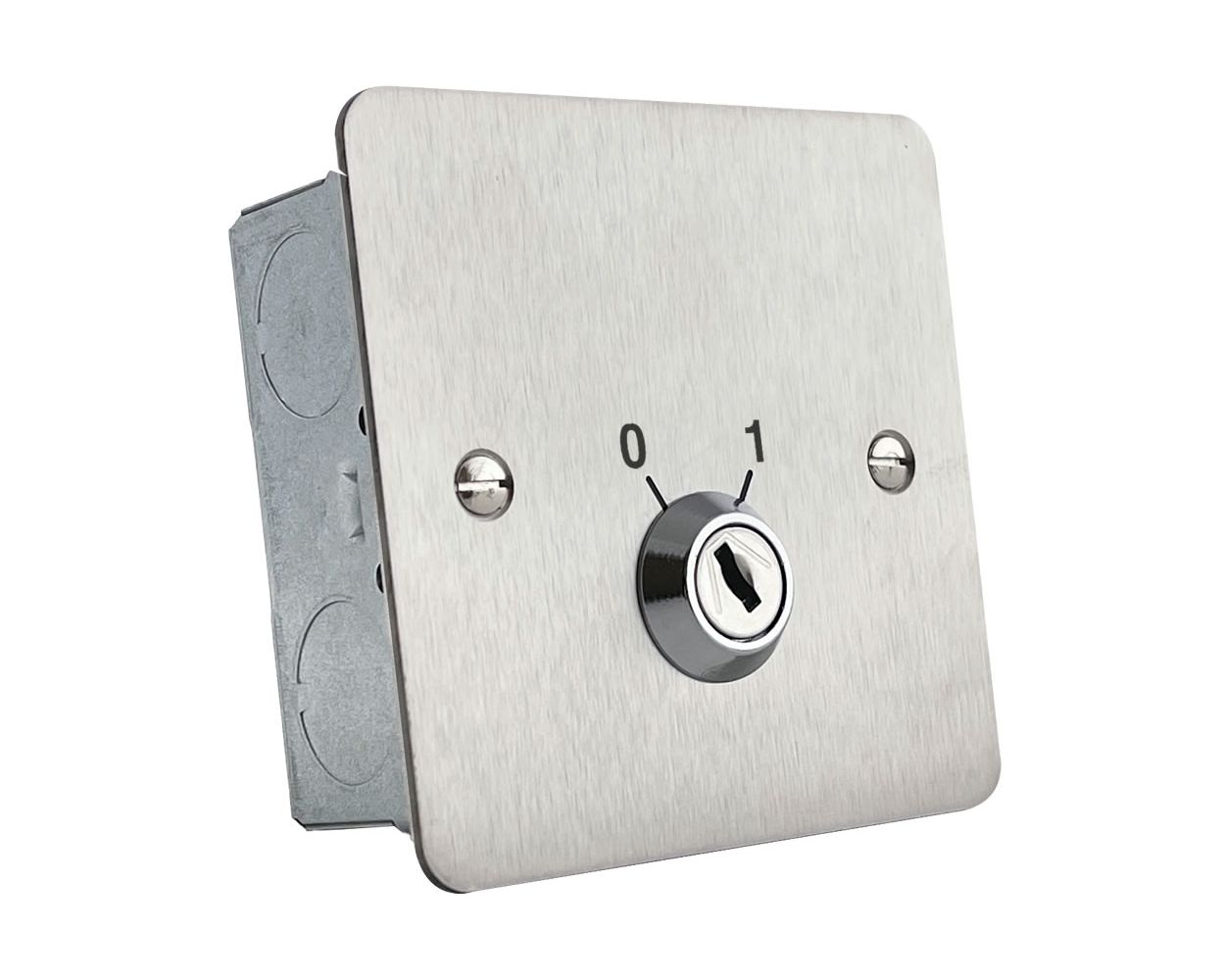

Two position keyswitch Stainless Steel with Tamper

Flush fitting stainless steel engraved two position keyswitch. This is a double pole unit with change over contacts and a single pole normally open Tamper Switch.

Specification

• Led Current - N/A
• Switch Contacts - 1 x N/O 1 x N/C both 500mA @30vdc
• Sounder Current - N/A
• Visual Indication - N/A
• Integral Sounder Level - N/A
• Tamper - YES - Single Pole Normally Closed
• Two keys supplied
• Material - 304 Grade Stainless Steel
• Dimensions - 86mm x 86mm x 2mm - Facia
• 47mm galvanised back box supplied
• Surface mounted using part no. S0610-50 listed below
• Weight - 0.28kg
• IP Rating - IP54 front side contact area
• Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required
