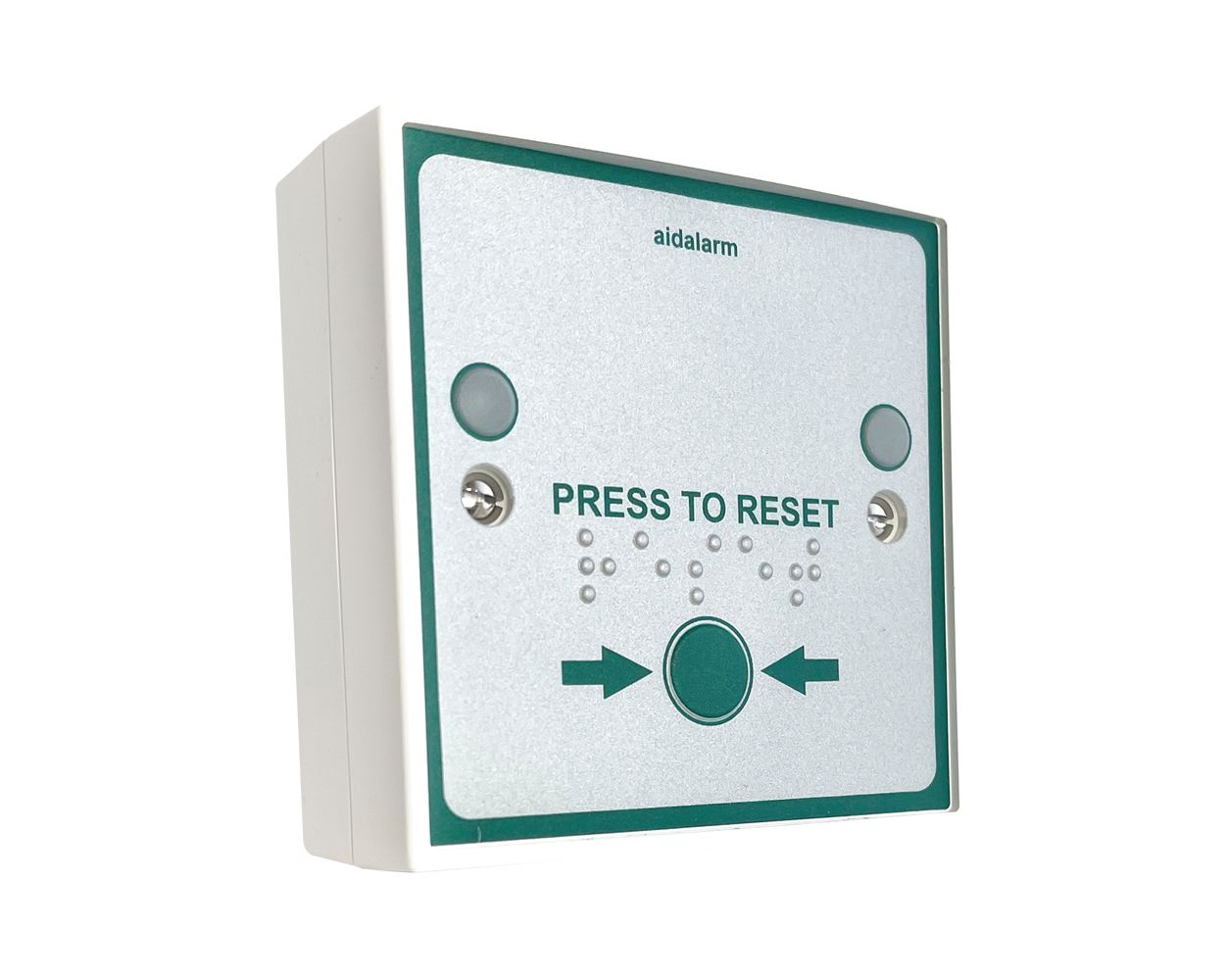

Aidalarm Press to Reset Button with Braille text

A wall mounting Press to Reset button with Braille text plus 2 high brightness yellow LEDs and sounder for caller reassurance. Enclosed in white ABS plastic, complete with a single gang surface mounting box. Flush fitting is also possible with a standard single gang back box. This is a non-latching unit with N.O. contacts specifically designed for use with our Aidalarm Disabled Toilet Alarm systems. The LEDs and sounder have separate terminals. The LED and sounder current limit resistor is provided for 12 vdc operation. The button contacts are rated at 50ma 24vdc resistive, N.O. press to close.
They should NOT be used for switch feeds to door strikes or mag locks etc.

Specification

• Led Current - 15A@12vdc
• Sounder Current -25m@12vdc
• Switch Contacts - 50mA@24vdc
• Visual Indication - 2 x High brightness yellow LEDs
• Integral Sounder Level - 70db @10cm
• Tamper - N/A
• Material - White ABS
• Weight - 0.13kg
• 87 x 87 x 36mm (Surface mount)
• IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
• Approvals - CE and RoHs compliant
• Back box supplied for surface mount
• Flush mount 18mm onto standard galvanised box (Not supplied)
• Mark resistant decal

Anti tamper screws available, see related products below
