Boxed Multi Function Timer Relay
Move your mouse over image or click to enlarge

Boxed Multi Function Timer Relay

Availability: In stock

From: Excl. VAT: £53.07 Incl. VAT: £63.68
Models available are:
S351-B - 12vdc powered
S351-B/24 - 24vdc powered
Select your required option from the drop down below.

Be the first to review this product

* Required Fields

Details

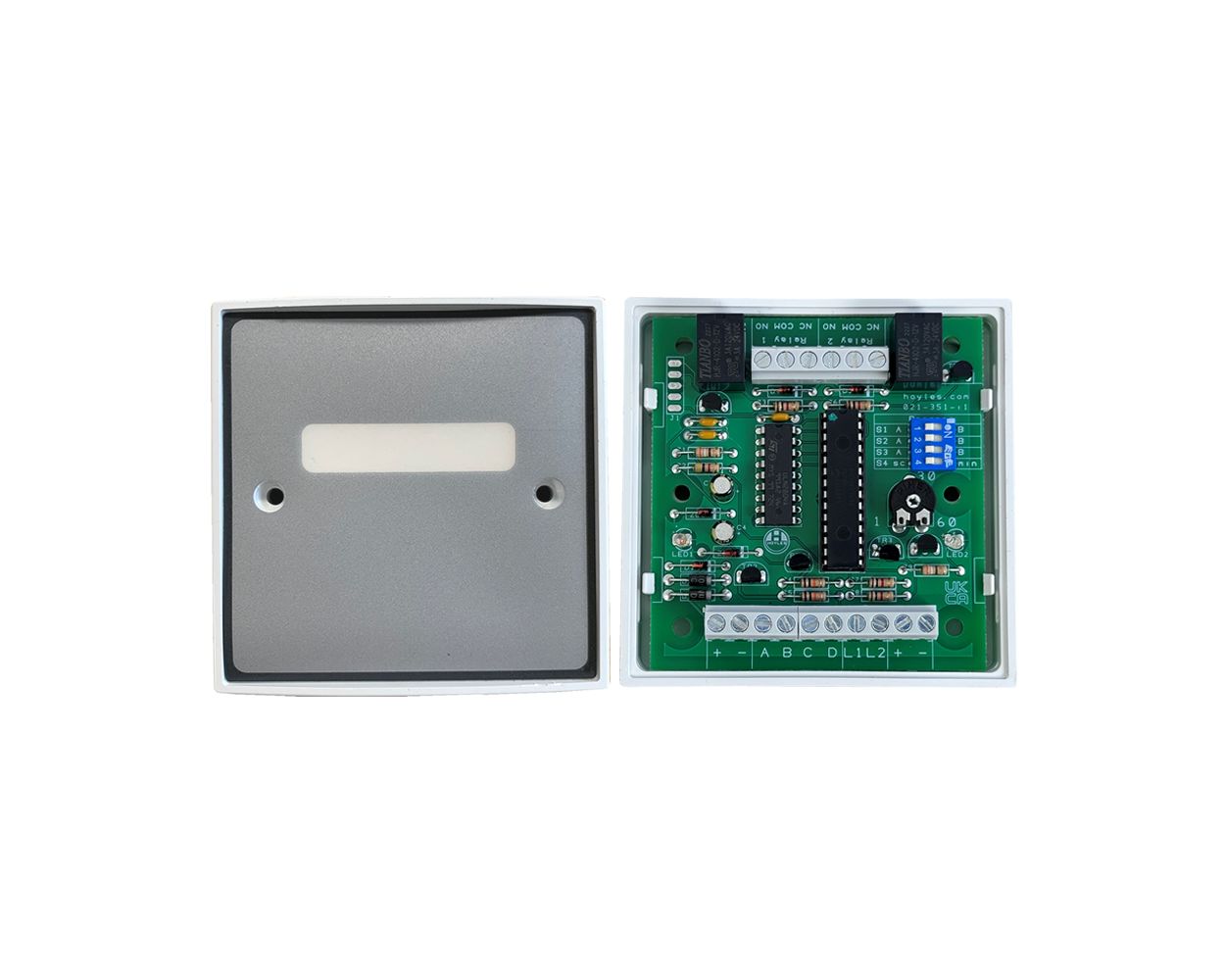

Mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch. A unique labelling system allows for the onsite labelling of the enclosure. Universal timer module with two timing ranges 1 - 60 sec's & 1 - 60 mins. Volt free DPCO relay contacts are rated at 1A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay i.e. one pulse energises the relay and a further pulse de-energises the relay.

    S351-B
  • Requires 12vdc supply at 80mA
  • Contacts Rated at 1amp
  • Six mounting holes provided for more permanent fixing
  • Knock outs for cable entry
  • Intended for internal use only

  • S351-B/24
  • Requires 24vdc supply at 85mA
  • Contacts Rated at 1amp
  • Six mounting holes provided for more permanent fixing
  • Knock outs for cable entry
  • Intended for internal use only

Relay Dimensions - L80mm x W74mm x D16mm Box Dimensions - L87mm x W87mm x D36mm
