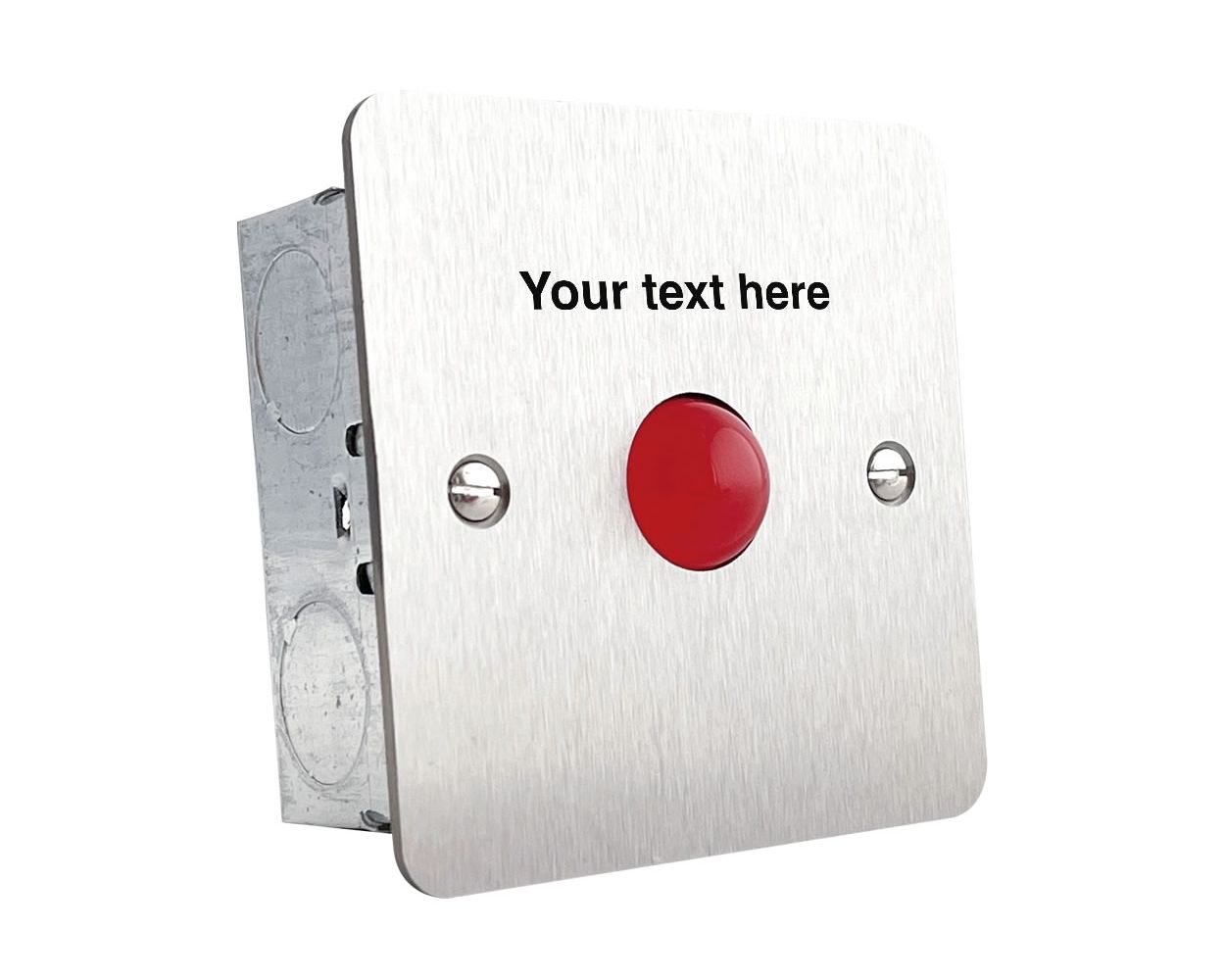

Red overd'r Light & Sounder Custom text Stainless steel

Stainless Steel flush fitting overdoor light and sounder with 16mm Red Jumbo LED. There are separate terminals provided for the LED. The LED and sounder current limit resistor is provided for 12 vdc operation. Supplied lasered with your own choice of text. Text to be specified when ordering - 45 characters maximum.

Specification

• Led Current - 50mA @12vdc
• Switch Contacts - N/A
• Sounder Current - 40mA @ 12vdc
• Visual Indication - 1 x Red Jumbo LED
• Integral Sounder Level - 90dB@10cm
• Tamper - N/A
• Material - 316 Stainless Steel
• Permanently laser marked
• Ideal for hygienic environments
• Dimensions - 86mm x 86mm x 2mm - Facia
• 38mm galvanised back box supplied
• Surface mounted using part no. S0610 listed below
• Weight - 0.26kg
• IP Rating - IP65 front side contact area
• Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required. Anti tamper screws available, see related products below.
