Request to Release button with sounder, Red&Green status LEDs

£74.72 Ex Vat

In stock

Product code

S1718S

Qty

Stainless Steel door status indicator with sounder, request to release vandal resistant push button, Red and Green LEDs.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

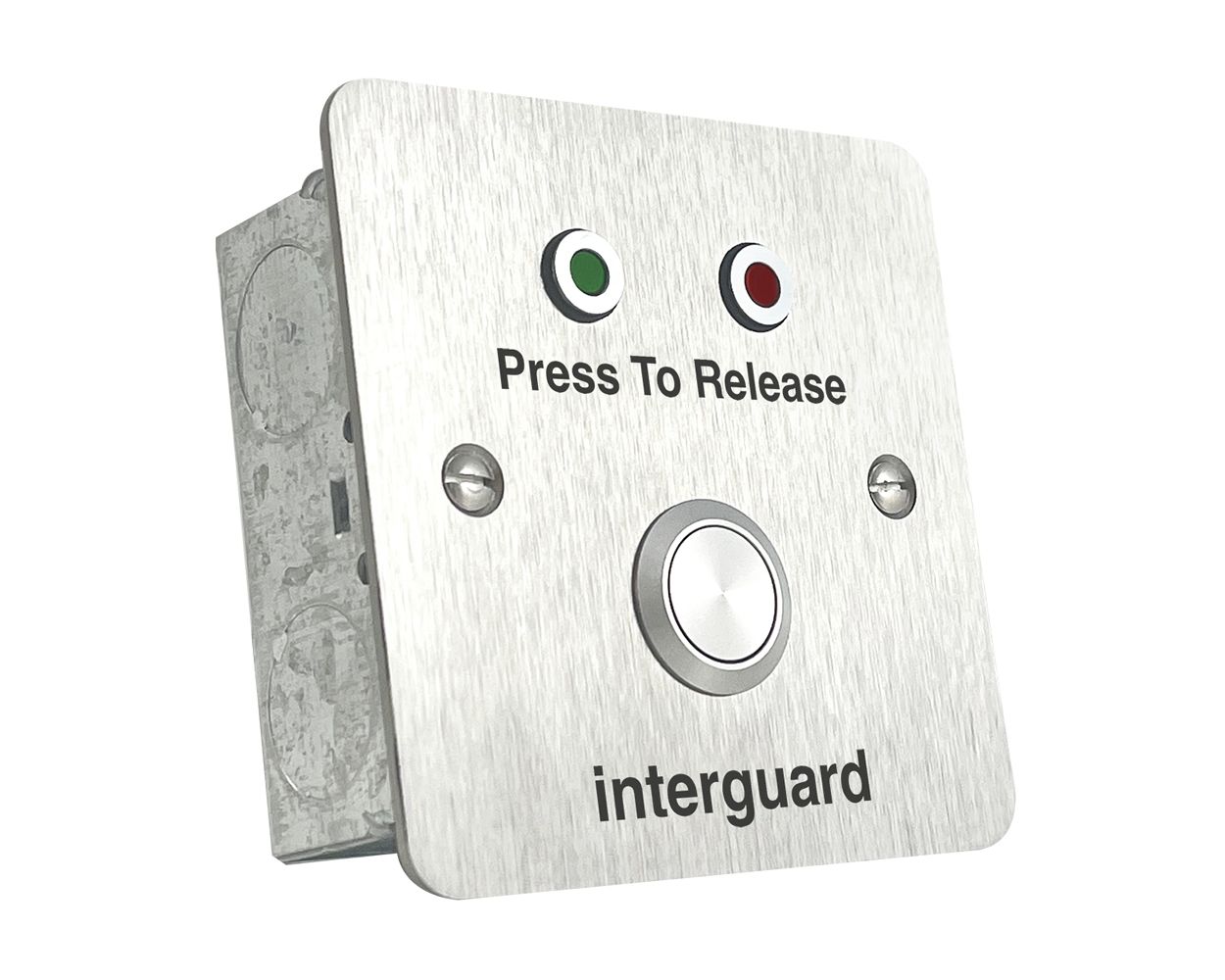

Door Status indicator with sounder, stainless steel vandal resistant push button together with one red and one green LED on a single gang stainless steel plate engraved 'Press To Release'. Specifically designed for use with our range of Interguard door interlock controllers. When used with an Interguard, the LEDs indicate the status of the relevant door.

Specification

Led Current - 20mA per LED@ 12vdc
Switch Contacts - Single pole normally open 2A@ 30vdc
Sounder Current - 40mA @ 12vdc
Visual Indication - 1 x red LED 1 x green LED
Integral Sounder Level - 90dB@10cm
Tamper - N/A
Material - 316 Grade Stainless Steel
Text - Permanently laser marked
Dimensions - 86 x 86 x 2mm - Facia
38mm galvanised back box supplied
Surface mounted using part no. S0610 listed below
Weight - 0.26kg
IP Rating - IP65 front side contact area
Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required, anti tamper screws available, see related products below

More Information

More Information
Country of Origin	UK
Condition	New
SKU	S1718S
Associated Product Codes	S1718S
Warranty	3 Years
-	Installation Instructions for S1718S
-	Product Information Sheet for S1718S
