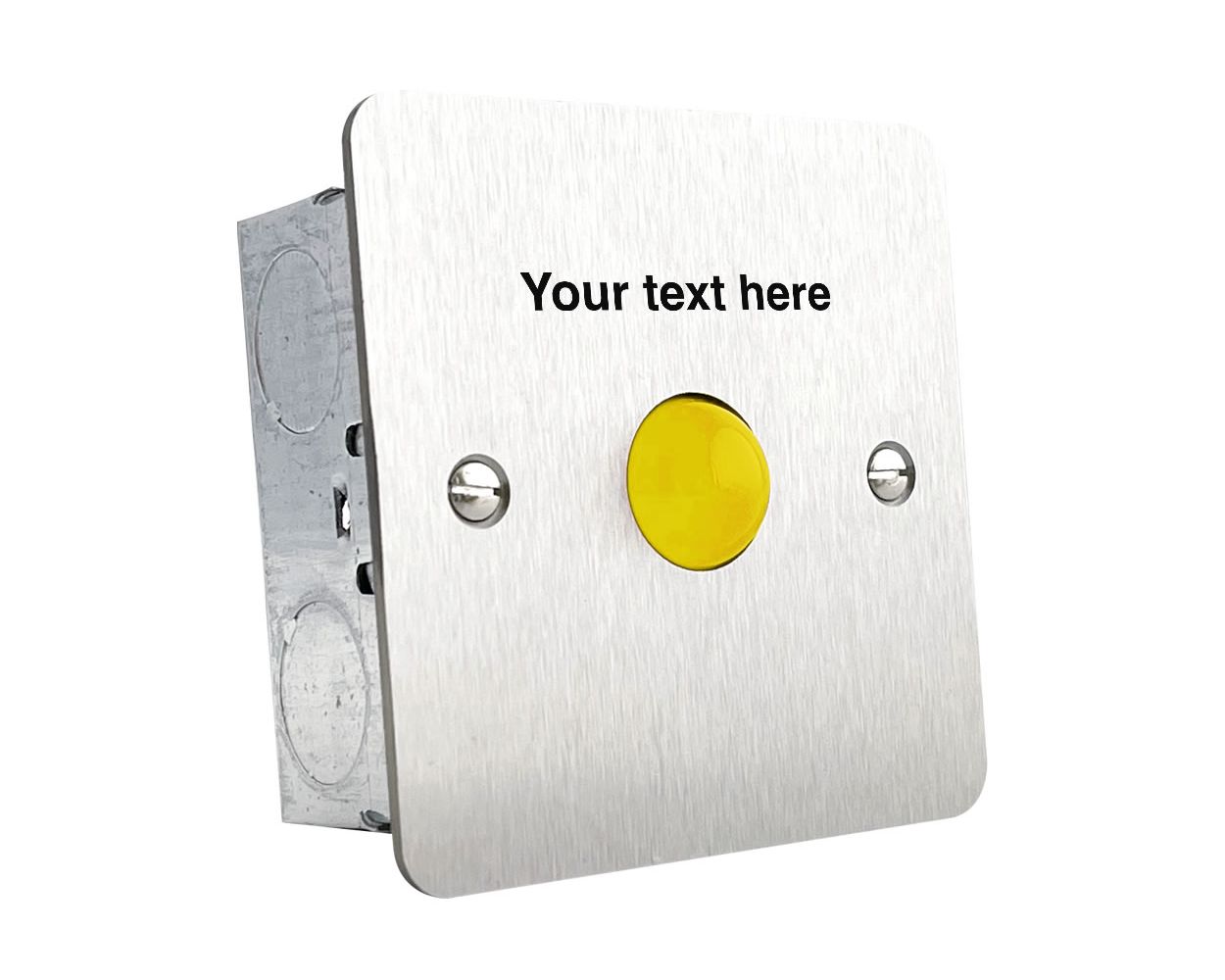

Yellow overd'r Light & Sounder Custom text Stainless steel

Stainless Steel flush fitting overdoor light and sounder with 16mm Yellow LED. There are separate terminals provided for the LED. The LED and sounder current limit resistor is provided for 12 vdc operation. Supplied lasered with your own choice of text. Text to be specified when ordering - 45 characters maximum.

Specification

Led Current - 50mA@12vdc
Switch Contacts - N/A
Sounder Current - 40mA @ 12vdc
Visual Indication - 1 x Yellow jumbo LEDs
Integral Sounder Level - 90db@10cm
Tamper - N/A
Material - 316 Grade Stainless Steel
Permanently laser marked
Ideal for hygienic environments
Dimensions - 86 x 86 x 2mm - Facia
38mm galvanised back box supplied
Surface mounted using part no. S0610 listed below
Weight - 0.26kg
IP Rating - IP65 front side contact area
Approvals - CE and RoHs compliant

Weather gasket Code: WG1 is available for the rear of the plate if required. Anti tamper screws available, see related products below

More Information
Country of Origin	UK
Condition	New
SKU	S1778SYTC
Associated Product Codes	S1778SYTC
Warranty	3 Years
-	Installation Instructions for S1778SYTC
-	Product Information Sheet for S1778SYTC
